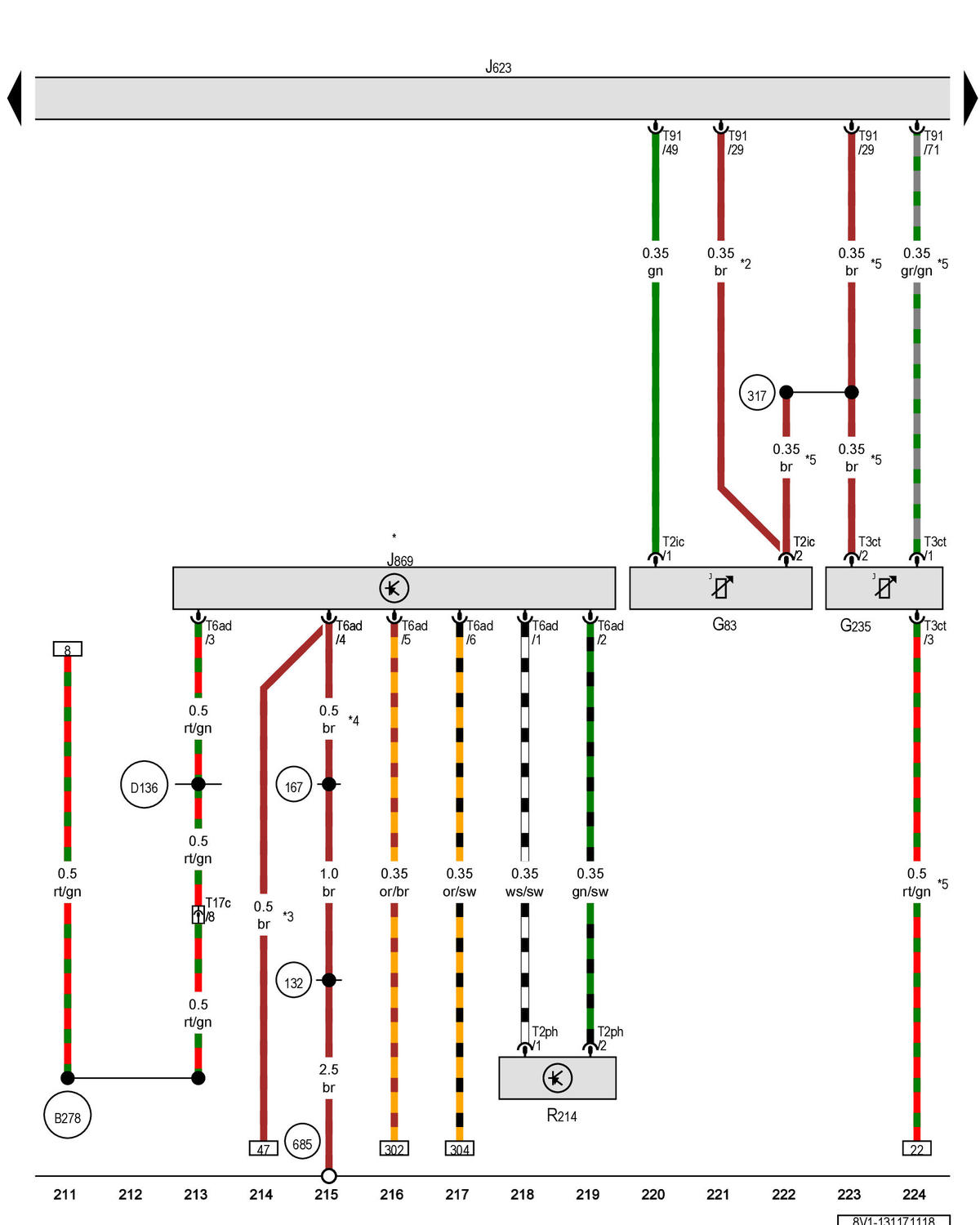

Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G83

Engine Coolant Temperature Sensor on Radiator Outlet Type:BT, Slpdok:, Aim:BTG83

G235

Exhaust Gas Temperature Sensor 1 Type:BT, Slpdok:, Aim:BTG235

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

J869

Structure-Borne Sound Control Module Type:BT, Slpdok:, Aim:BTJ869

R214

Structure-Borne Sound Actuator Type:BT, Slpdok:, Aim:BTR214

T2ic

2-Pin Connector, Black

T2ph

2-Pin Connector, Black

T3ct

3-Pin Connector, Black

T6ad

6-Pin Connector, Black

T17c

17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c

T91

91-Pin Connector, Black

132

Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)

167

Ground Connection 4 (in Engine/Motor Compartment Wiring Harness)

317

Ground Connection 7 (in Engine/Motor Compartment Wiring Harness)

685

Ground Connection 1 on Right Front Longitudinal Member Type:VB, Slpdok:, Aim:VB685

B278

Positive Connection 2 (15a) (in Main Wiring Harness)

D136

Positive Connection 2 (15a) (in Engine/Motor Compartment Wiring Harness)

*

Depending on Equipment

*2

Running Change

*3

For RHD Vehicles

*4

For LHD Vehicles

*5

Omitted as a Running Change
