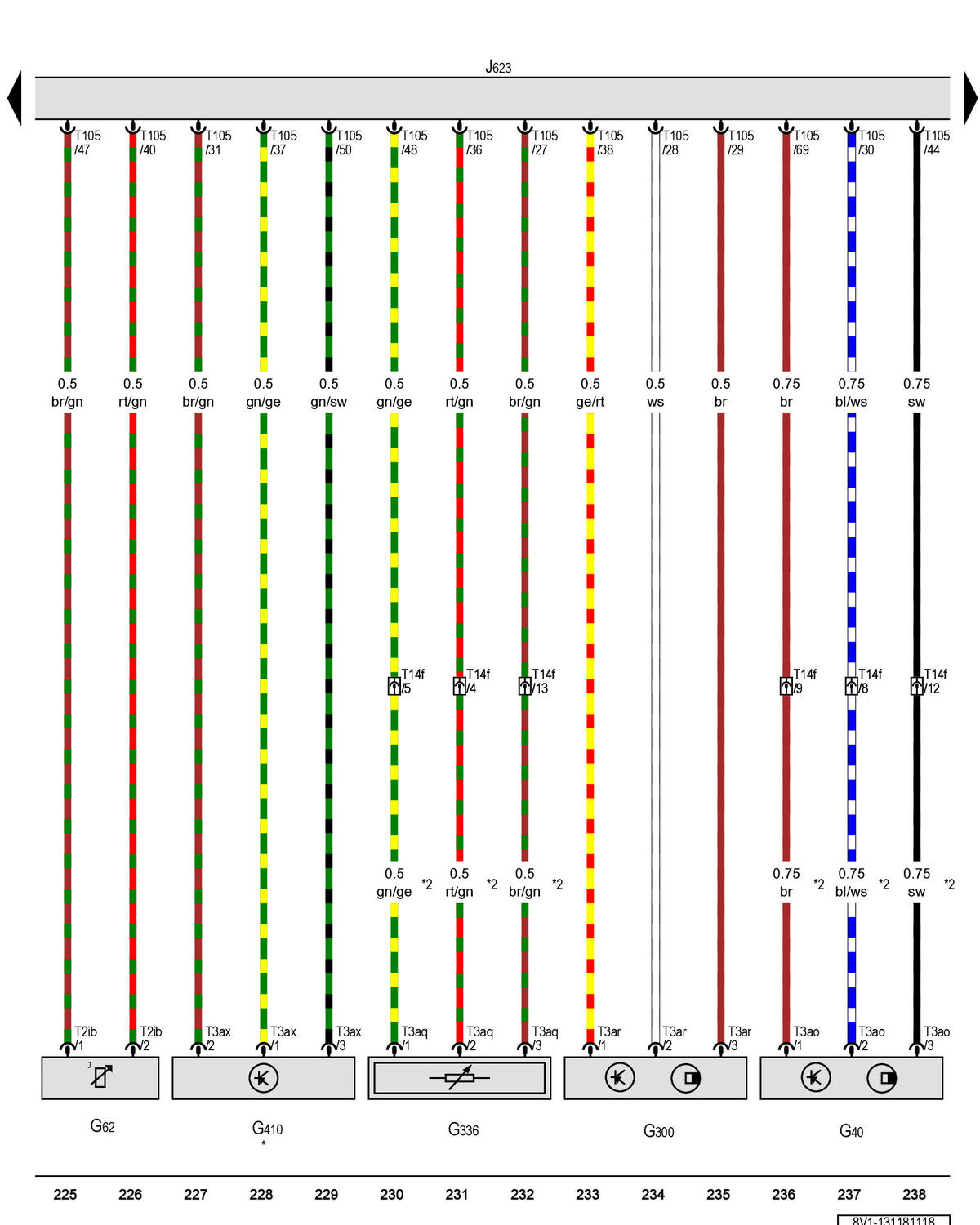

Camshaft Position Sensor, Engine Coolant Temperature Sensor, Camshaft Position Sensor 3, Intake Manifold Runner Position Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G40

Camshaft Position Sensor Type:BT, Slpdok:, Aim:BTG40

G62

Engine Coolant Temperature Sensor Type:BT, Slpdok:, Aim:BTG62

G300

Camshaft Position Sensor 3 Type:BT, Slpdok:, Aim:BTG300

G336

Intake Manifold Runner Position Sensor Type:BT, Slpdok:, Aim:BTG336

G410

Low Fuel Pressure Sensor Type:BT, Slpdok:, Aim:BTG410

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T2ib

2-Pin Connector, Black

T3ao

3-Pin Connector, Black

T3aq

3-Pin Connector, Black

T3ar

3-Pin Connector, Black

T3ax

3-Pin Connector, Blue

T14f

14-Pin Connector, In the Engine/Motor Compartment, Black Type:BT, Slpdok:, Aim:BTT14f

T105

105-Pin Connector, Black

*

For Vehicles Without US Equipment

*2

The Color of the Wires Depends on Vehicle Equipment
