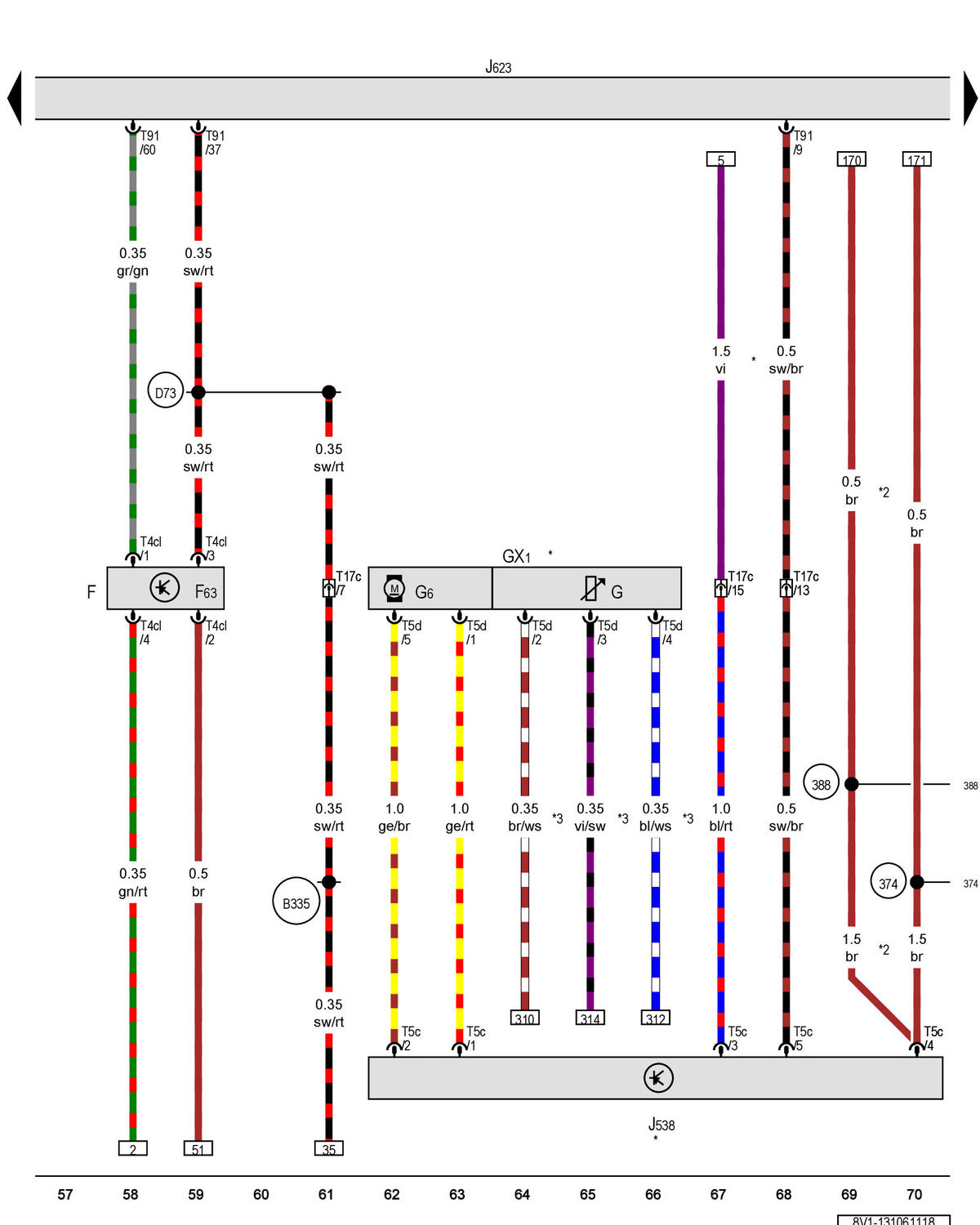

Brake Lamp Switch, Fuel Level Sensor, Fuel Delivery Unit, Transfer Fuel Pump, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F

Brake Lamp Switch Type:BT, Slpdok:, Aim:BTF

F63

Brake Pedal Switch Type:BT, Slpdok:, Aim:BTF63

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

J538

Fuel Pump Control Module Type:BT, Slpdok:, Aim:BTJ538

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T4cl

4-Pin Connector, Black

T5c

5-Pin Connector, Black

T5d

5-Pin Connector, Black

T17c

17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c

T91

91-Pin Connector, Black

374

Ground Connection 9 (in Main Wiring Harness)

388

Ground Connection 23 (in Main Wiring Harness)

B335

Connection 54 (in Main Wiring Harness) 1

D73

Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)

*

For FWD vehicles

*2

For Convertible

*3

Refer to Applicable Fuel System Wiring Diagram
