Overview - Subframe, Vehicles With Front Wheel Drive (FWD)

CAUTION:

There is a risk of damaging the threads on the subframe threaded connection to the body.

  • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
  • Always install all bolts by hand for the first few turns.

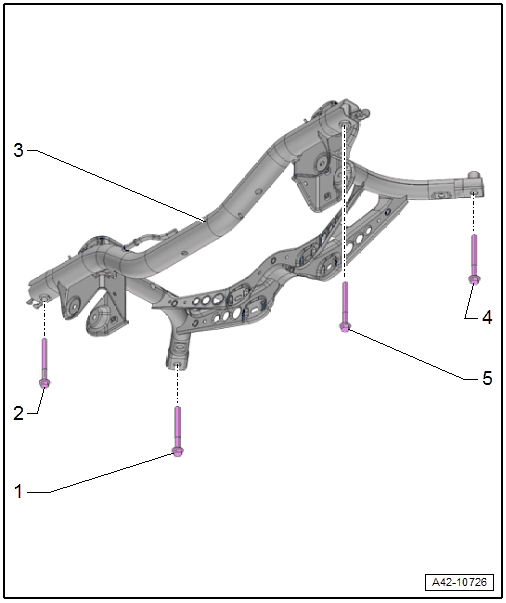

Fig 1: Subframe Exploded View, Vehicles With Front Wheel Drive (FWD)
GWWA42-10726Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 90 Nm + 90°
    • Always replace if removed
  2. Subframe
  3. Bolt
    • 90 Nm + 90°
    • Always replace if removed
  4. Bolt
    • 90 Nm + 90°
    • Always replace if removed
  5. Bolt
    • 90 Nm + 90°
    • Always replace if removed
