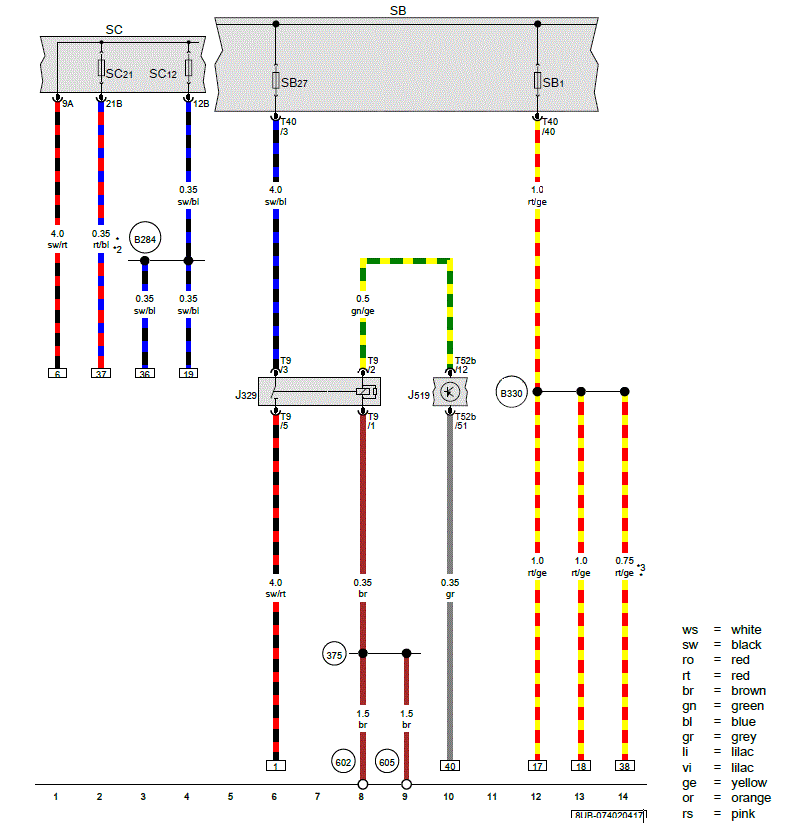

Terminal 15 Power Supply Relay

J329  Terminal 15 power supply relay

J519  Vehicle electrical system control module

SB  Fuse panel B

SB1  Fuse 1 (on fuse panel B)

SC12  Fuse 12 (on fuse panel C)

SC21  Fuse 21 (on fuse panel C)

SB27  Fuse 27 (on fuse panel B)

SC  Fuse panel C

T9  9-pin connector, black

T40  40-pin connector, black

T52b  52-pin connector, naturally cloudy

(375) Ground connection 10 (in main wiring harness)

(602) Ground connection in left front footwell

(605) Ground connection on upper steering column

(B284) Positive connection 8 (15a) (in main wiring harness)

(B330) Positive connection 16 (30a) (in main wiring harness)

*  Depending on equipment

*2  from November 2014

*3  Diameter depends on equipment
