Center Cushion, Removing And Installing: Removing

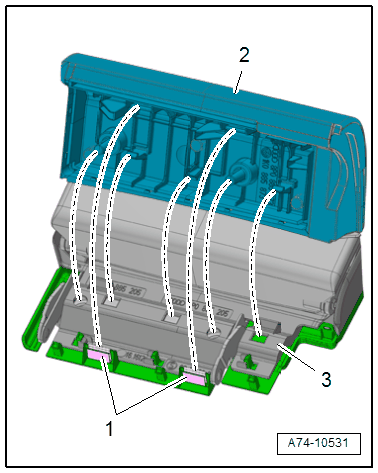

GWWA74-10531Courtesy of AUDI OF AMERICA, LLC

-- Grasp by hand under the center cushion.

-- Pull the center cushion -2- forward using force from the clips -1-.

-- Disengage the remaining hooks from the pass-through -3- and remove the center cushion.

NOTE:

For the sake of illustration, pass-through is depicted as removed.
