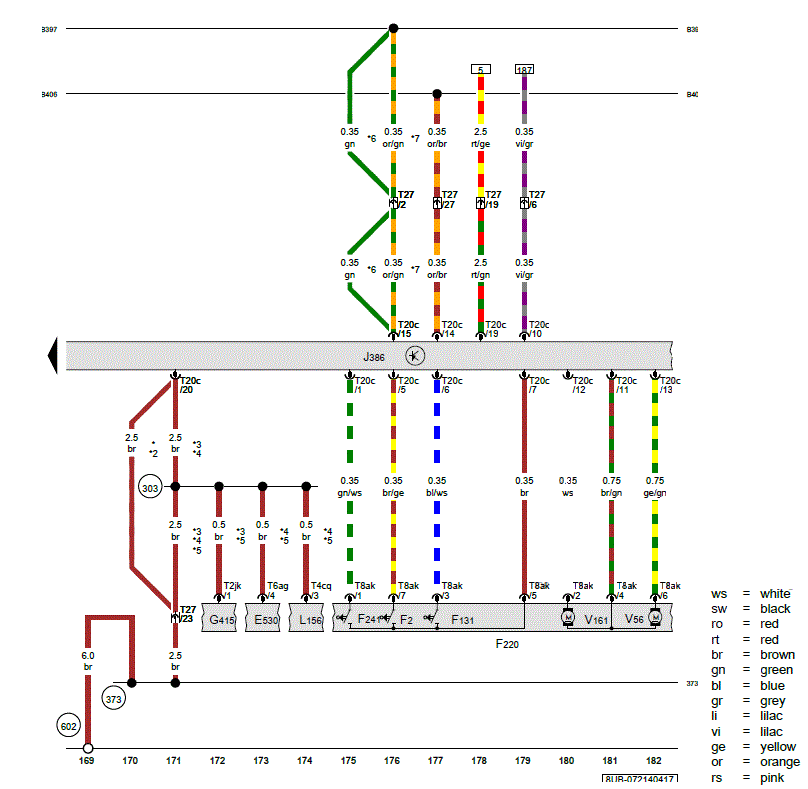

Driver Central Locking Lock Unit, Driver Door Control Module
E530 Lane change assistance button
F2 Driver door contact switch
F131 Left front central locking system actuator
F220 Driver central locking lock unit
F241 Driver lock cylinder contact switch
G415 Driver exterior door handle touch sensor
J386 Driver door control module
L156 Switch illumination bulb
T2jk 2-pin connector, black
T4cq 4-pin connector, black
T6ag 6-pin connector, black
T8ak 8-pin connector, black
T20c 20-pin connector, black
T27 27-pin connector, on the left A-pillar
V56 Driver door central locking system motor
V161 Driver door central locking -SAFE- motor
(303) Ground connection 3 (in driver door wiring harness)
(373) Ground connection 8 (in main wiring harness)
(602) Ground connection in left front footwell
(B397) Comfort system CAN bus high connection 1 (in main wiring harness)
(B406) Comfort system CAN bus low connection 1 (in main wiring harness)
* Only for Vehicles Without Access/Start Authorization System
*2 Depending on Equipment
*3 Only for Vehicles with Access/Start Authorization System
*4 Only for Vehicles with Lane Assist
*5 Refer to Applicable Wiring Diagram
*6 From November 2016
*7 Through October 2016
