Overview - Steering Column Trim Panel

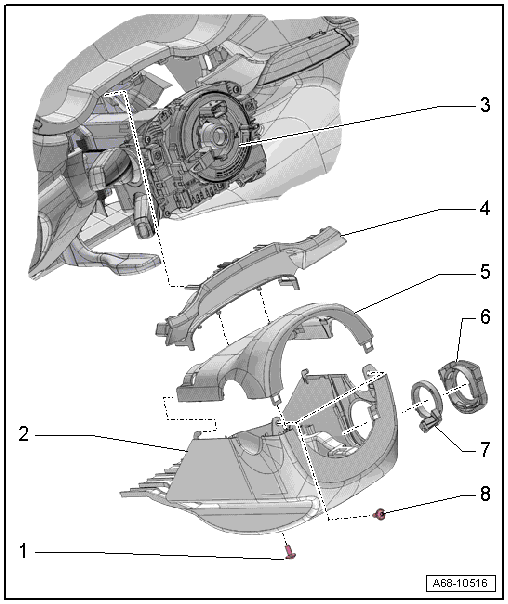

Fig 1: Steering Column Trim Panel Component Locations

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
Lower Trim Panel
- For the steering column switch module
- Removing and installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Steering Column Switch Module
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
Gap Cover
- For instrument cluster
- Removing and installing. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly.
Upper Trim Panel
- For the steering column switch module
- Removing and installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Mount
- For the reading coil
- Removing and installing. Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING .
Anti-Theft Immobilizer Reader Coil -D2-
- Equipment levels
- Removing and installing. Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- Quantity: 2
