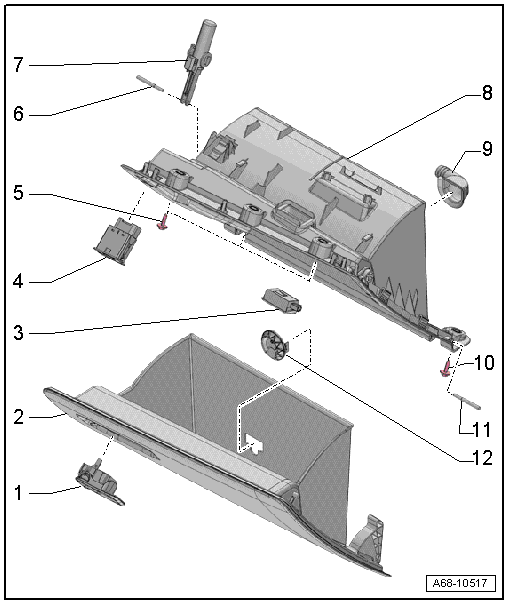

Overview - Glove Compartment
- Glove Compartment Opener
- Removing and installing. Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING .
- Press into the glove compartment cover until it engages audibly
- Glove Compartment Lid with Storage Compartment
- Activate the glove compartment cover emergency release. Refer to GLOVE COMPARTMENT LID EMERGENCY RELEASE, OPERATING .
- Removing and installing. Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- Removing and Installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
NOT FOR NORTH AMERICAN MARKET
- Bolt
- 3 Nm
- Quantity: 3
- Hinge Pin
- For the brake component
- Lid Dampening Mechanism
- For the glove compartment lid
- With Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to GLOVE COMPARTMENT LID DAMPENING MECHANISM, REMOVING AND INSTALLING .
- Glove Compartment
- Removing and installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
- Connection for Glove Compartment Cooling
- Equipment levels
- Bolt
- 3 Nm
- Quantity: 3
- Hinge Pin
- Quantity: 2
- For the glove compartment lid
- Vent for Glove Compartment Cooling
- Equipment levels
- Blind cover for vehicles without glove compartment cooling
