Overview - Front Center Armrest

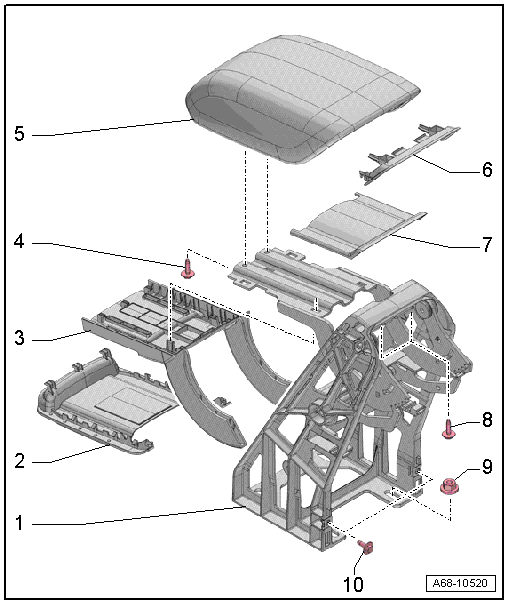

Fig 1: Front Center Armrest Component Locations

Courtesy of AUDI OF AMERICA, LLC

Front Center Armrest
- Removing and installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Lower Cover
- For the center armrest cushion
- Engage in the front of the center armrest cushion and press on it until it engages audibly.
Lower Trim Panel
- For the center armrest
- available as a replacement part only with -item 1-
- Clipped in the center armrest
Bolt
- 2.2 Nm
- Quantity: 2
Center Armrest Padding
- Removing and installing. Refer to CENTER ARMREST UPPER SECTION, REMOVING AND INSTALLING .
Rear Cover
- For the center armrest cushion
- available as a replacement part only with -item 5-
- Clipped in the center armrest cushion
Upper Trim Panel
- For the center armrest
- Available as a replacement part only with -item 1-
- Clipped in the center armrest
Bolt
- 3 Nm
- Quantity: 2
Nut
- 10 Nm
- Quantity: 4
Bolt
- 3 Nm
- Quantity: 2
