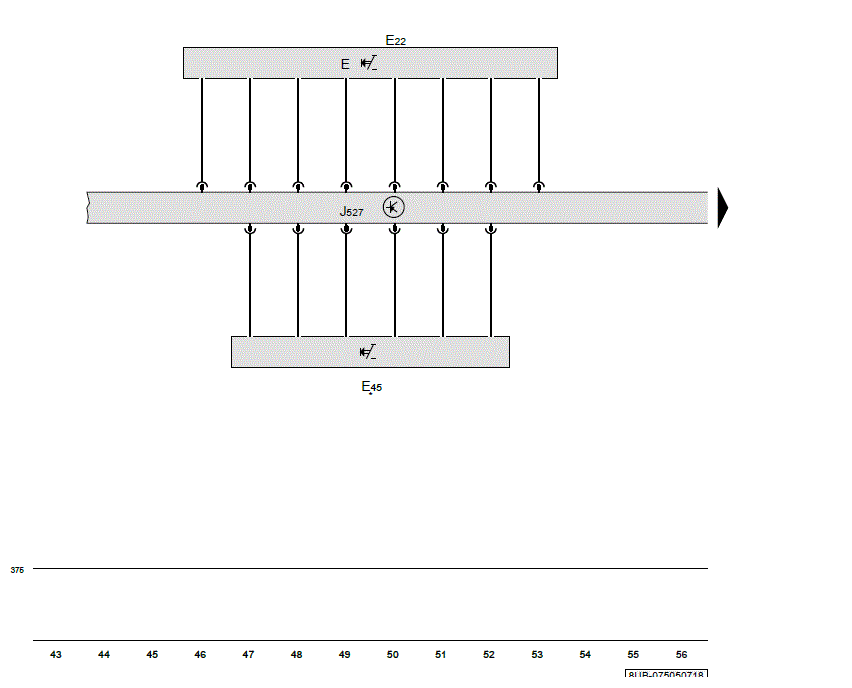

Windshield Wiper Intermittent Mode Switch, Cruise Control Switch, Steering Column Electronics Control Module

G00577615Courtesy of AUDI OF AMERICA, LLC

E  Windshield wiper switch

E22  Windshield wiper intermittent mode switch

E45  Cruise control switch

J527  Steering column electronics control module

(375) Ground connection 10 (in main wiring harness)

*  Only for vehicles with cruise control
