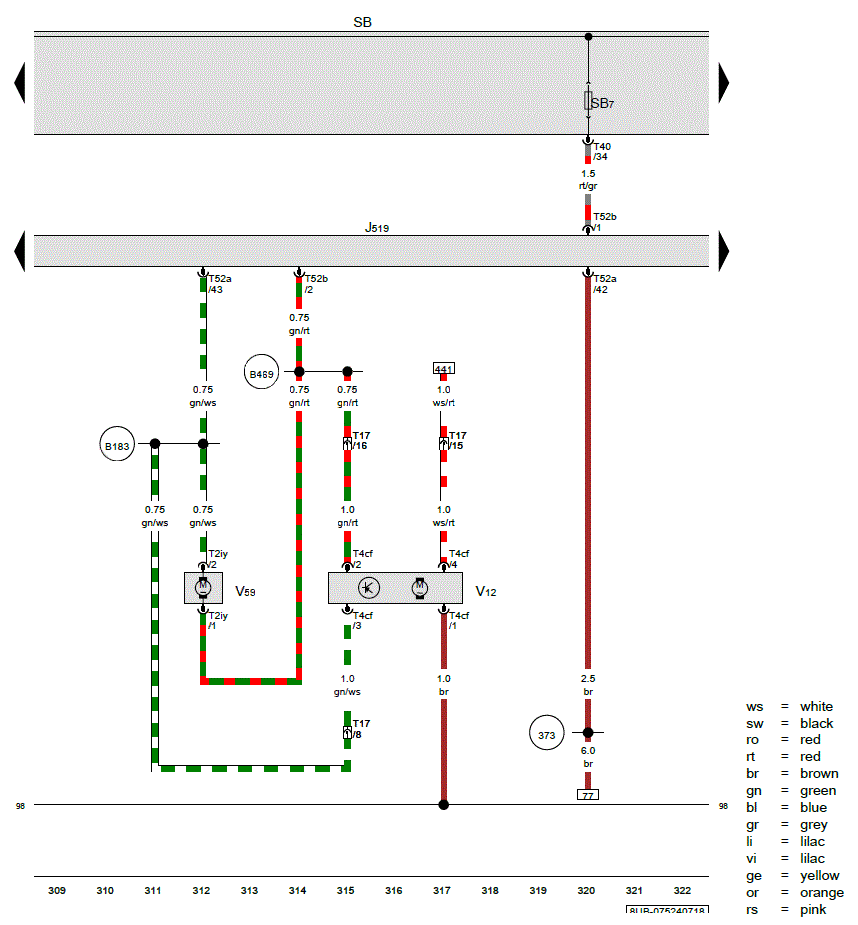

Vehicle Electrical System Control Module, Rear Window Wiper Motor, Windshield And Rear Window Washer Pump
J519 Vehicle electrical system control module
SB Fuse Panel B
SB7 Fuse 7 (on fuse panel B)
T2iy 2-pin connector, black
T4cf 4-pin connector, black
T17 17-pin connector, black
T40 40-pin connector, black
T52a 52-pin connector, black
T52b 52-pin connector, naturally cloudy
V12 Rear window wiper motor
V59 Windshield and rear window washer pump
(98) Ground connection (in rear lid wiring harness)
(373) Ground connection 8 (in main wiring harness)
(B183) Windshield washer pump connection 1 (in interior wiring harness)
(B469) Connection 5 (in main wiring harness)
