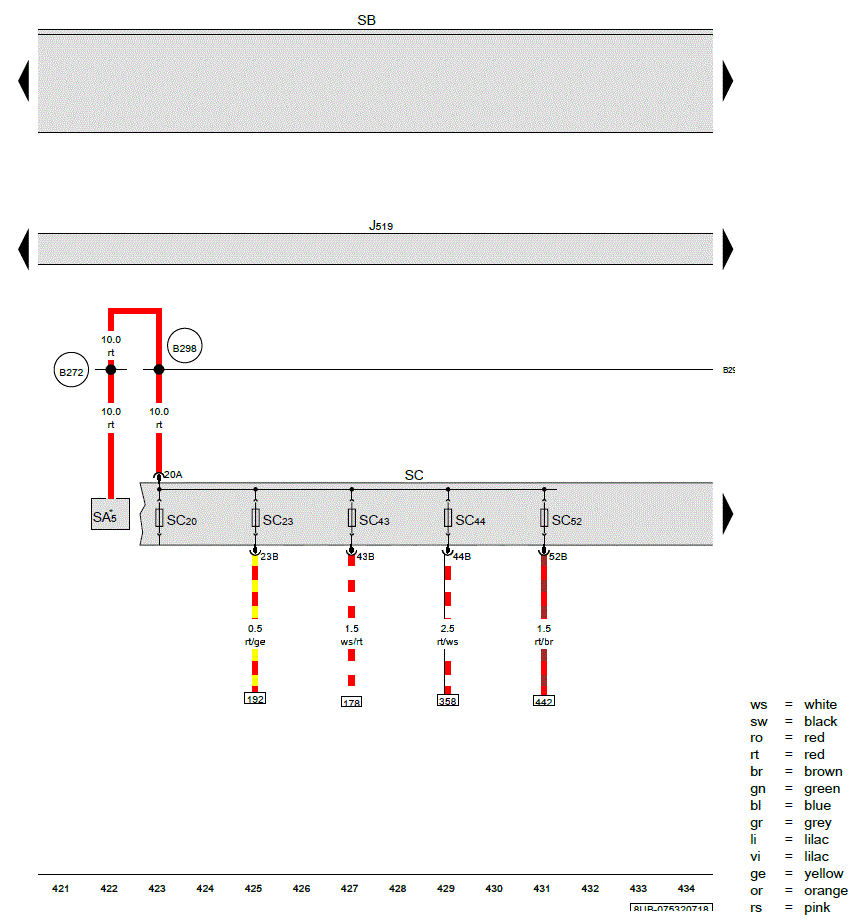

Vehicle Electrical System Control Module, Fuse Panel C
J519 Vehicle electrical system control module
SA5 Fuse 5 (On Fuse Panel A)
SB Fuse Panel B
SC Fuse Panel C
SC20 Fuse 20 (on fuse panel C)
SC23 Fuse 23 (on fuse panel C)
SC43 Fuse 43 (on fuse panel C)
SC44 Fuse 44 (on fuse panel C)
SC52 Fuse 52 (on fuse panel C)
(B272) Positive connection (30) (in main wiring harness)
(B298) Positive connection 2 (30) (in main wiring harness)
* Refer to applicable battery wiring diagram
