Turn Signal Switch, Steering Angle Sensor, Signal Horn Activation, Steering Column Electronics Control Module

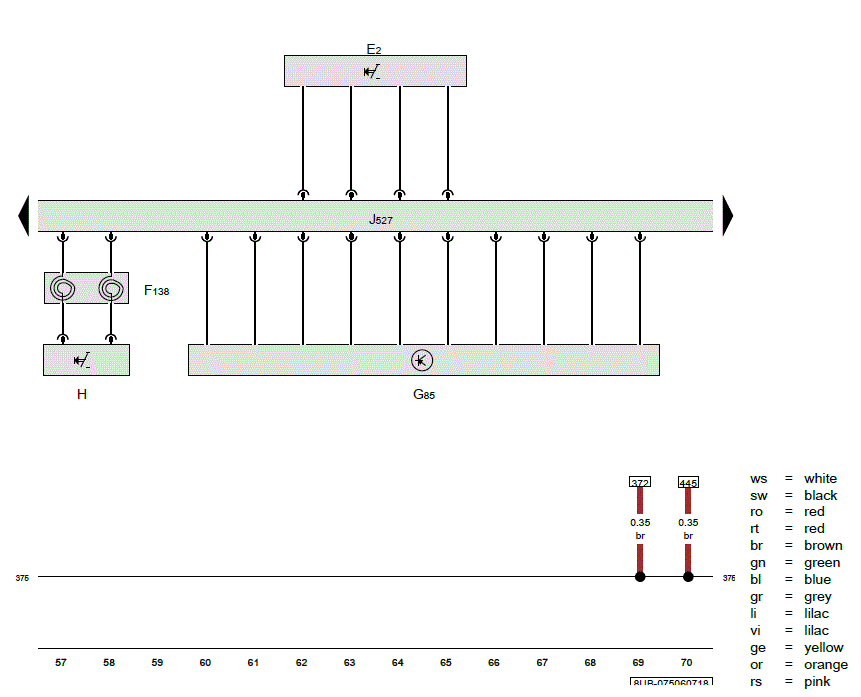

G00577616Courtesy of AUDI OF AMERICA, LLC

E2  Turn signal switch

F138  Airbag spiral spring/return spring with slip ring

G85  Steering angle sensor

H  Signal horn activation

J527  Steering column electronics control module

(375) Ground connection 10 (in main wiring harness)
