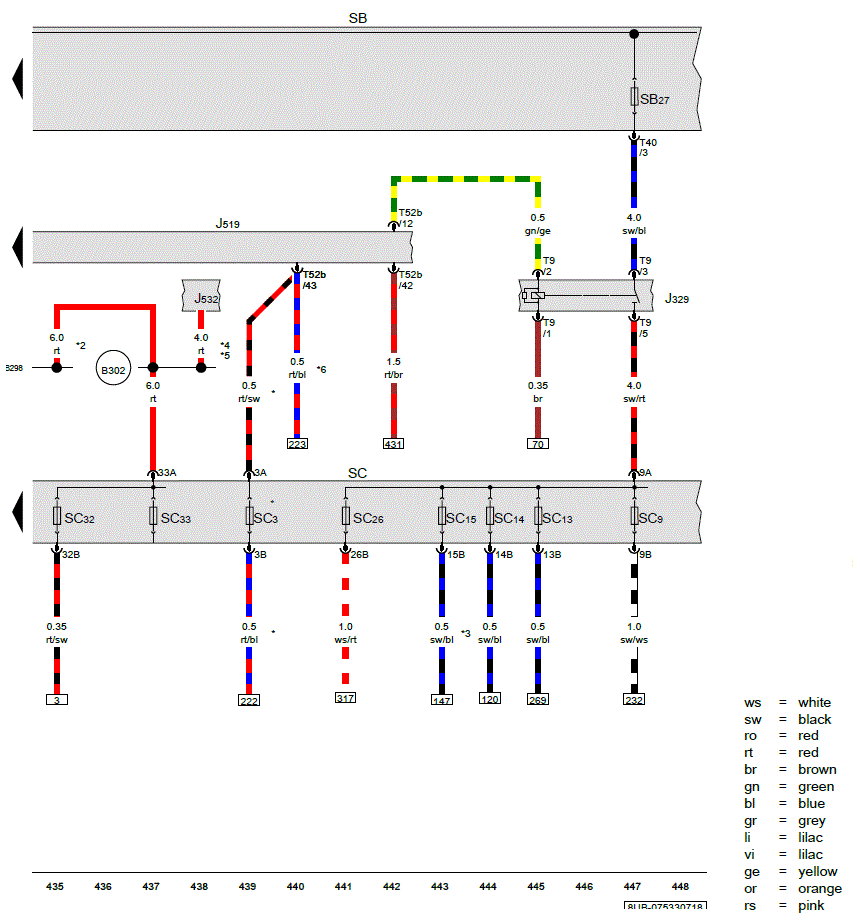

Terminal 15 Power Supply Relay, Vehicle Electrical System Control Module, Fuse Panel C
J329 Terminal 15 power supply relay
J519 Vehicle electrical system control module
J532 Voltage stabilizer
SB Fuse Panel B
SC Fuse panel C
SC3 Fuse 3 (on fuse panel C)
SC9 Fuse 9 (on fuse panel C)
SC13 Fuse 13 (on fuse panel C)
SC14 Fuse 14 (on fuse panel C)
SC15 Fuse 15 (on fuse panel C)
SC26 Fuse 26 (on fuse panel C)
SB27 Fuse 27 (on fuse panel B)
SC32 Fuse 32 (on fuse panel C)
SC33 Fuse 33 (on fuse panel C)
T9 9-pin connector, black
T40 40-pin connector, black
T52b 52-pin connector, naturally cloudy
(B298) Positive connection 2 (30) (in main wiring harness)
(B302) Positive connection 6 (30) (in main wiring harness)
* Only for vehicles without Start/Stop system
*2 Diameter depends on equipment
*3 Only for vehicles with Start/Stop system
*4 Refer to applicable battery wiring diagram
