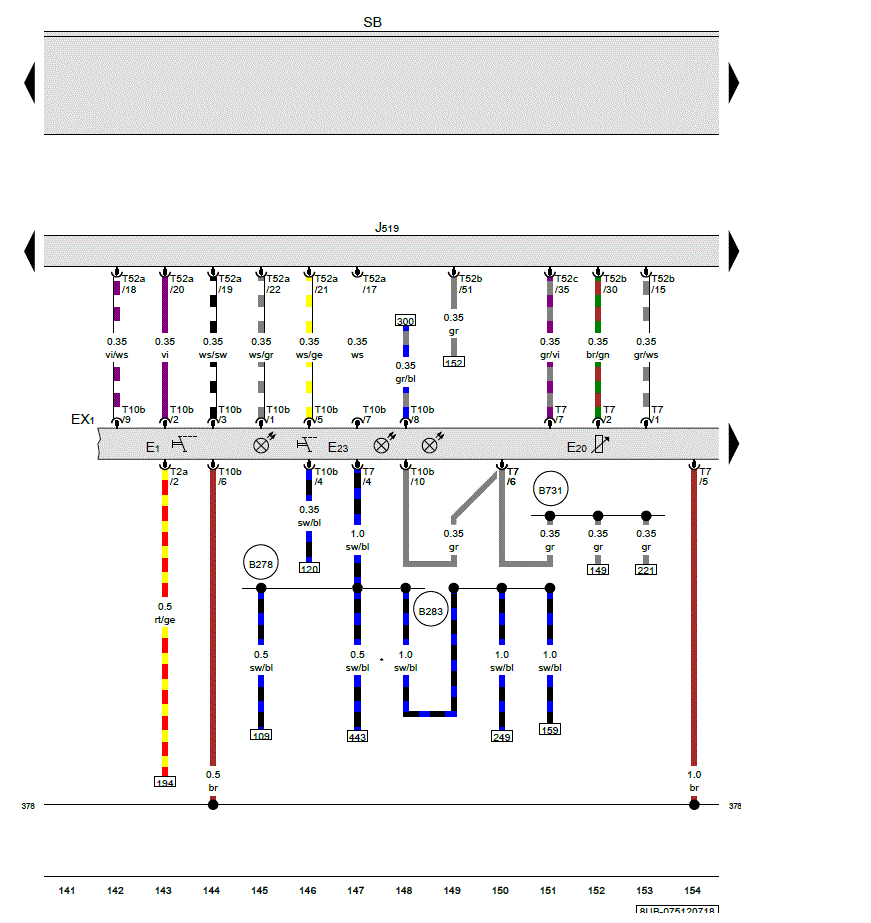

Rotary Light Switch, Instrument Panel And Switch Illumination Dimmer Switch, Fog Lamp And Rear Fog Lamp Switch, Vehicle Electrical System Control Module
EX1 Rotary Light Switch
E1 Light switch
E20 Instrument panel and switch illumination dimmer switch
E23 Fog lamp and rear fog lamp switch
J519 Vehicle electrical system control module
SB Fuse Panel B
T2a 2-pin connector
T7 7-pin connector
T10b 10-pin connector
T52a 52-pin connector, black
T52b 52-pin connector, naturally cloudy
T52c 52-pin connector, brown
(378) Ground connection 13 (in main wiring harness)
(B278) Positive connection 2 (15a) (in main wiring harness)
(B283) Positive connection 7 (15a) (in main wiring harness)
(B731) Connection 58s (in main wiring harness) 1
* Diameter depends on equipment
