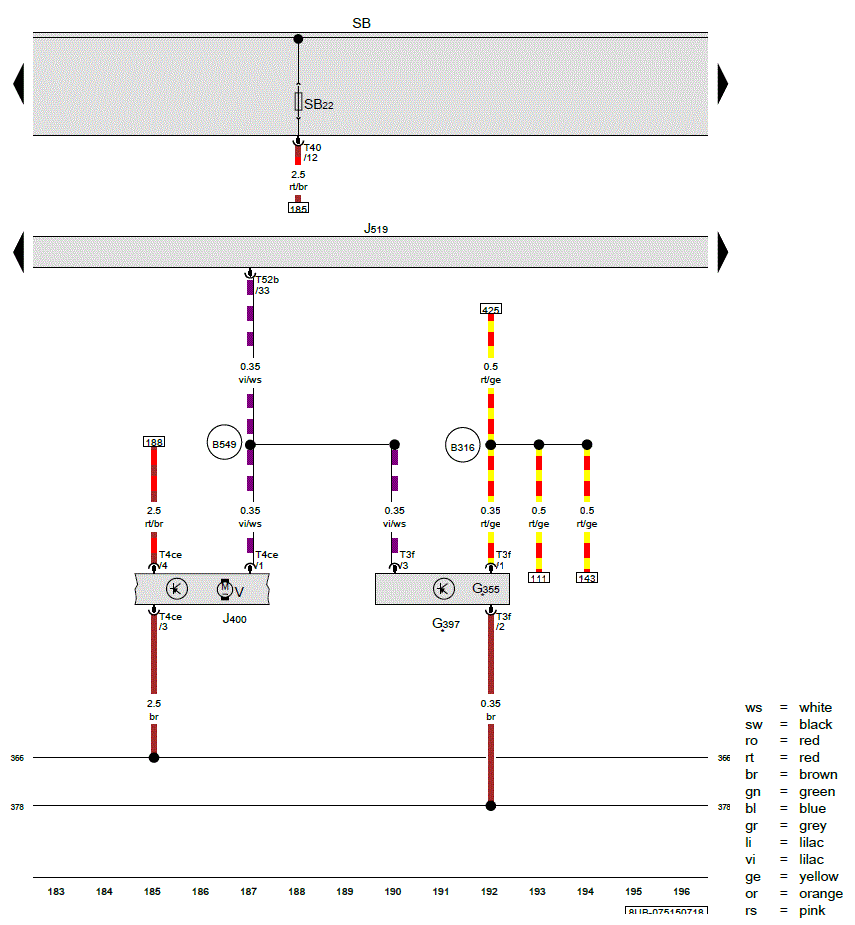

Rain/Light Recognition Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Windshield Wiper Motor
G355 Humidity sensor
G397 Rain/light recognition sensor
J400 Wiper motor control module
J519 Vehicle electrical system control module
SB Fuse Panel B
SB22 Fuse 22 (on fuse panel B)
T3f 3-pin connector, black
T4ce 4-pin connector, black
T40 40-pin connector, black
T52b 52-pin connector, naturally cloudy
V Windshield wiper motor
(366) Ground connection 1 (in main wiring harness)
(378) Ground connection 13 (in main wiring harness)
(B316) Positive connection 2 (30a) (in main wiring harness)
(B549) LIN bus connection 2 (in main wiring harness)
* Depending on equipment
