Overview - Headliner

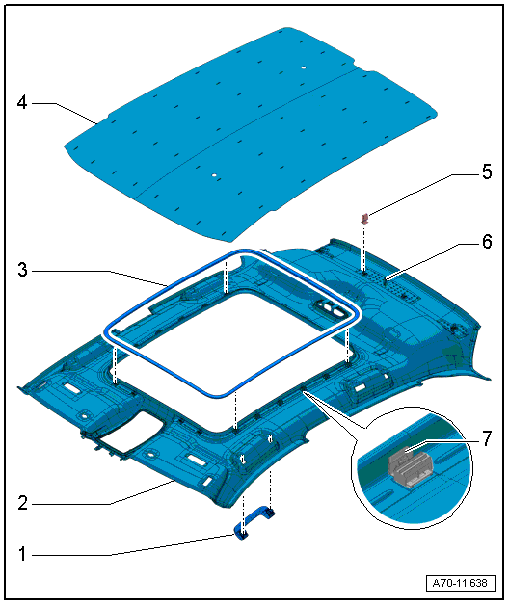

Fig 1: Headliner Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Roof Grab Handle
   • Quantity: 4
   • Removing and installing. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .
   • Press the expanding caps until they lock completely.
2. Headliner

   Vehicles with:

   • without a sunroof
   • with sunroof

   There are different versions. When replacing on versions with Driver Assistance Systems Front Camera -R242- determine the version  7; allocation. Refer to the Parts Information.

   • Removing and installing. Refer to HEADLINER, REMOVING AND INSTALLING .
     CAUTION:

     • The headliner bends easily.
     • Replace the headliner if it is bent.
3. Cover Frame
   • only for version equipped with sunroof
4. Roof Reinforcement
   • Only for equipment levels without sunroof
   • Attaching to the body. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY .
5. Clip
   • Quantity: 4
   • Insert in the headliner
   • Remove any remaining clips from the body using Omega Clip Tool:T40280  and use them to install the headliner.
   • Replace damaged or deformed clips
6. Centering Piece
7. Clip
   • For vehicles with sunroof
   • Quantity 21
   • Release Removing .
   • Insert in the headliner
   • Remove the remaining clips in the cover frame and insert in the headliner during installation
   • Replace damaged or deformed clips

Courtesy of AUDI OF AMERICA, LLC

Before ordering a new headliner on vehicle version with a Driver Assistance Systems Front Camera -R242- the version must be determined.
