Overview - Rear Sill Panel Strip

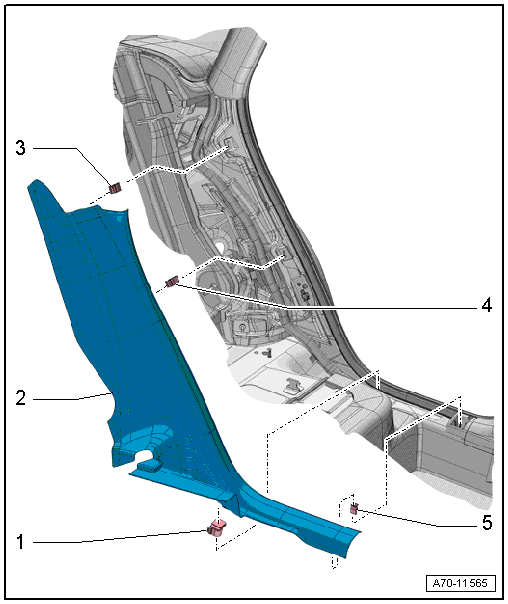

Fig 1: Rear Sill Panel Strip Exploded View

Courtesy of AUDI OF AMERICA, LLC

Clip
- Insert in the sill panel strip
Rear Sill Panel Strip
- Removing and installing. Refer to REAR SILL PANEL STRIP, REMOVING AND INSTALLING .
- Place the sill panel strip in the belt guide and the C-pillar trim.
- Press on until it engages audibly
- Stretch the door seal lip over
Clip
- Insert in the sill panel strip
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips
Clip
- insert in the sill panel strip
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips
Clip
- insert in the sill panel strip
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the sill panel strip.
- Replace damaged or deformed clips
