Overview - C-Pillar Trim Panel

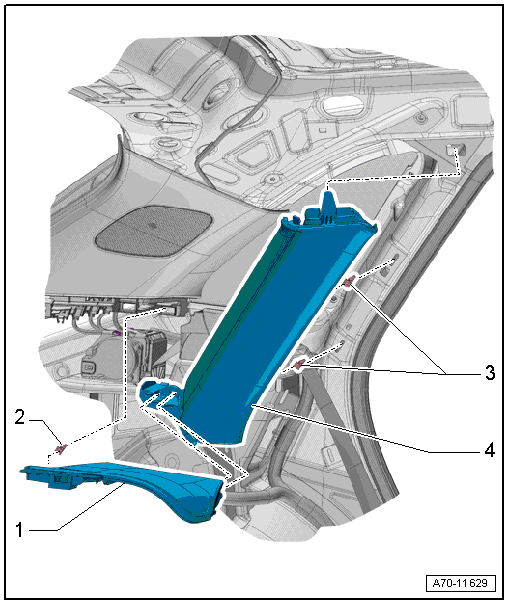

Fig 1: C-Pillar Trim Panel Exploded View

Courtesy of AUDI OF AMERICA, LLC

Cover
- For belt guide
- Removing and installing. Refer to SEAT BELT GUIDE COVER, REMOVING AND INSTALLING .
- Clipped in the C-pillar trim panel and the D-pillar trim panel
Clip
- Quantity: 2
- Install in the seat belt guide cover
- Replace any damaged or deformed clips
Clip
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
C-Pillar Trim Panel
- Removing and installing. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Insert in the upper part of the mounting point on the roof and clip into the C-pillar
- Press on until it engages audibly
- Stretch the door seal lip over
