Component Location Overview - Instrument Panel Controls

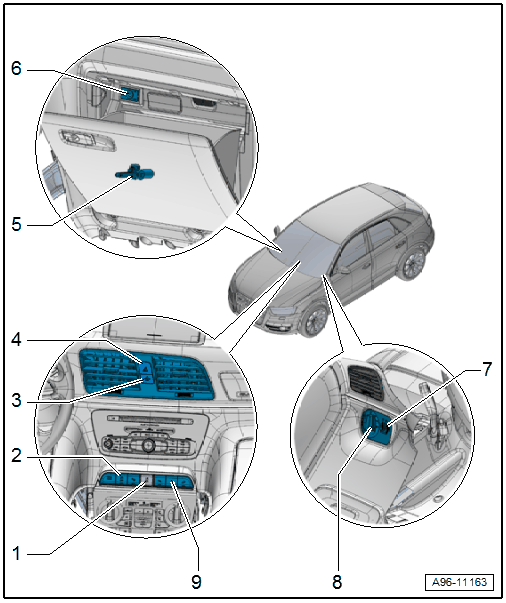

Fig 1: Components Location - Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

1. ASR/ESP Button -E256-
   • Removing and installing. Refer to ASR/ESP Button -E256-, REMOVING AND INSTALLING .
2. Left Lower Button Unit
   • Equipment level
   • With Driving Profile Selection Switch Module -E592-, Start/Stop Mode Button -E693-, Parallel Parking Assistance Button -E581-
   • Removing and installing. Refer to LOWER LEFT INSTRUMENT PANEL BUTTON UNIT, REMOVING AND INSTALLING .
3. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Equipment level
   • Is in one housing with the Emergency Flasher Button -E229- and cannot be replaced separately if faulty.
   • Removing and installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
4. Emergency Flasher Button -E229-
   • Removing and installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
5. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
6. Front Passenger Airbag Deactivation Key Switch -E224-
   • Removing and installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
7. Controls/Switch Unit
   • With Instrument Panel and Switch Illumination Dimmer Switch -E20-, Headlamp Range Control Adjuster -E102-
   • Removing and installing. Refer to Instrument Panel and Switch Illumination Dimmer Switch -E20-, REMOVING AND INSTALLING .
8. Light Switch -E1-
   • With Fog Lamp and Rear Fog Lamp Switch -E23-
   • Removing and installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
9. Right Lower Button Unit
   • Equipment level
   • With Parking Aid Button -E266-, Hill Descent Control Button -E618-
   • Removing and installing. Refer to LOWER RIGHT INSTRUMENT PANEL BUTTON UNIT, REMOVING AND INSTALLING .
