Overview - Rear Shelf

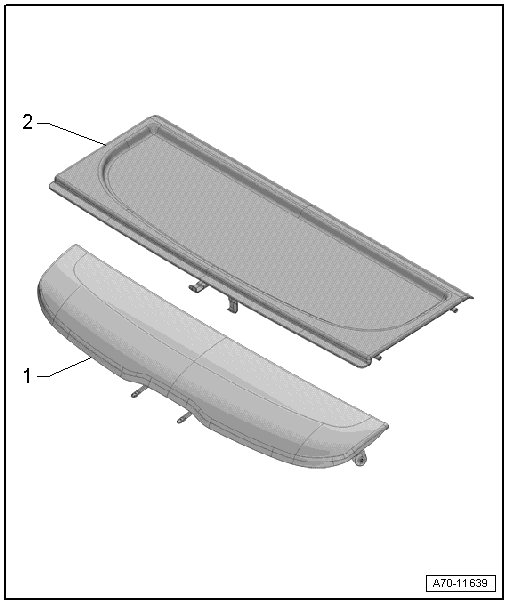

Fig 1: Rear Shelf Exploded View

Courtesy of AUDI OF AMERICA, LLC

Rear Shelf Rear Section
- Removing and installing. Refer to REAR SHELF REAR SECTION, REMOVING AND INSTALLING .
- hung on rear lid
Front of the Rear Shelf
- Equipment levels
- Removing and installing. Refer to FRONT REAR SHELF, REMOVING AND INSTALLING .
- Insert into the mounts on the luggage compartment side trim panel and push it forward.
