C-Pillar Trim Panel, Removing And Installing: Removing
WARNING:
Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
-- Remove the rear outer belt guide. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .

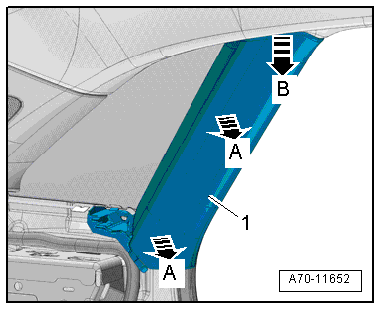

-- Remove the C-pillar trim panel -1- from the C-pillar -arrow A- using the Pry Lever : 80-200 .
-- Remove the upper C-pillar trim from the bracket on the body -arrow B- by moving the trim toward the inside and pulling it downward at the same time.
