Tail Lamp Cover, Removing And Installing: Removing

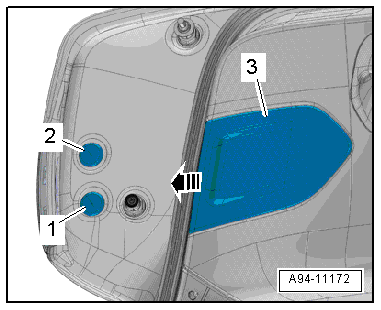

GWWA94-11172Courtesy of AUDI OF AMERICA, LLC

-- Unclip the tail lamp cover -3- from the lower rear lid trim panel in the direction of the -arrow-.

NOTE:

Ignore -items 1 and 2-.
