Overview - Upper Rear Lid Trim Panel

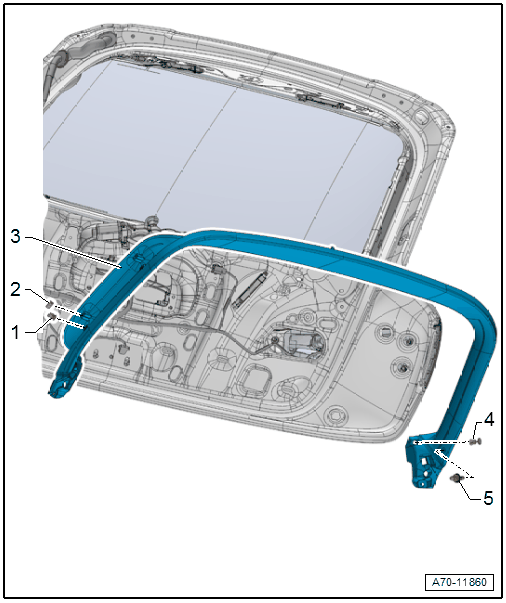

Fig 1: Upper Rear Lid Trim Panel Exploded View

Courtesy of AUDI OF AMERICA, LLC

Clip
- Quantity: 9
- Insert in the trim panel
- Remove any remaining rear lid clips using Omega Clip Tool:T40280 and use them to install the trim.
- Replace damaged or deformed clips
Rubber Buffer
- Quantity: 7
- Insert in the trim panel
Upper Rear Lid Trim Panel
- Removing and installing. Refer to UPPER REAR LID TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Expanding Clip
- Quantity: 2
Mount
- For the rear shelf rear section
- Quantity: 2
