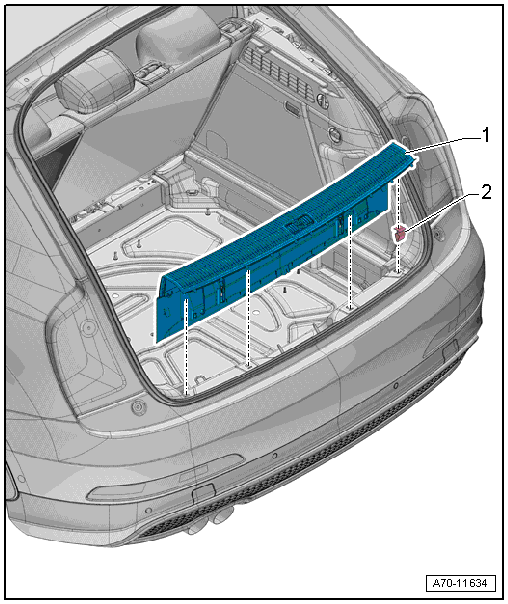

Overview - Lock Carrier Trim
- Lock Carrier Trim
- With Rear Lid -Closed- Sensor 1 -G525- /Rear Lid -Closed- Sensor 2 -G526-
- Removing and installing. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the rear lid seal lip
- Clip
- Quantity: 4
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
