Instrument Panel Side Cover, Removing And Installing: Removing

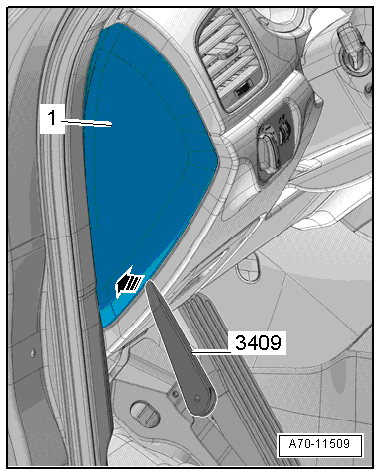

GWWA70-11509Courtesy of AUDI OF AMERICA, LLC

-- Pry off the cover -1- for the instrument panel side cover using the Trim Removal Wedge :3409  -arrow-.

-- Remove the cover rearward from the A-pillar gap cover.
