Front Center Defroster Vent, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

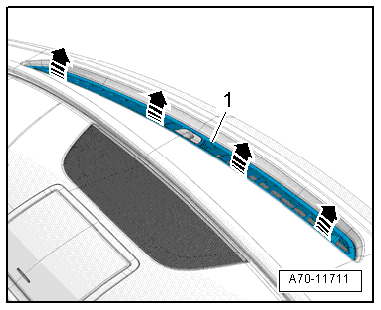

-- Pry the defroster vent -1- with the Wedge:T10383/1  and the Trim Removal Wedge : 3409  from the instrument panel -arrows- and remove toward the rear.

-- Remove the defroster vent until it is possible to disconnect the Sunlight Photo Sensor -G107-.
