Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • If the lane departure warning camera bracket is deformed or damaged, replace it together with the windshield glass.
  • If the lane departure warning camera is dropped, replace it with a new one.
  • When replacing the windshield glass of a vehicle equipped with a lane departure warning camera, make sure to use a Lexus genuine part. The lane departure warning camera may not be able to be installed due to a missing bracket or the lane departure alert system may not operate properly due to a difference in the transmissivity or black ceramic border.
  1. INSTALL LANE DEPARTURE WARNING CAMERA
    1. When using a new lane departure warning camera:
      1. Remove the protective film.

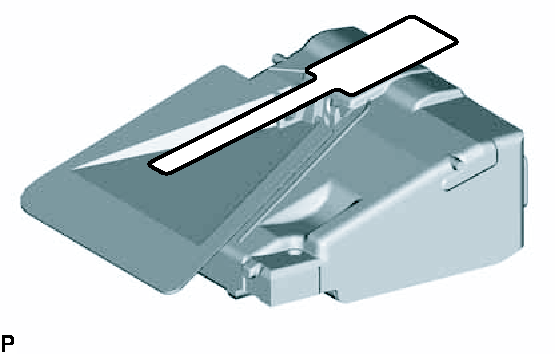

        Fig 1: Removing Camera Lens Protective Film
        GTY417925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        Do not touch the camera lens after removing the protective film.

    2. Engage the 2 guides as shown in the illustration.

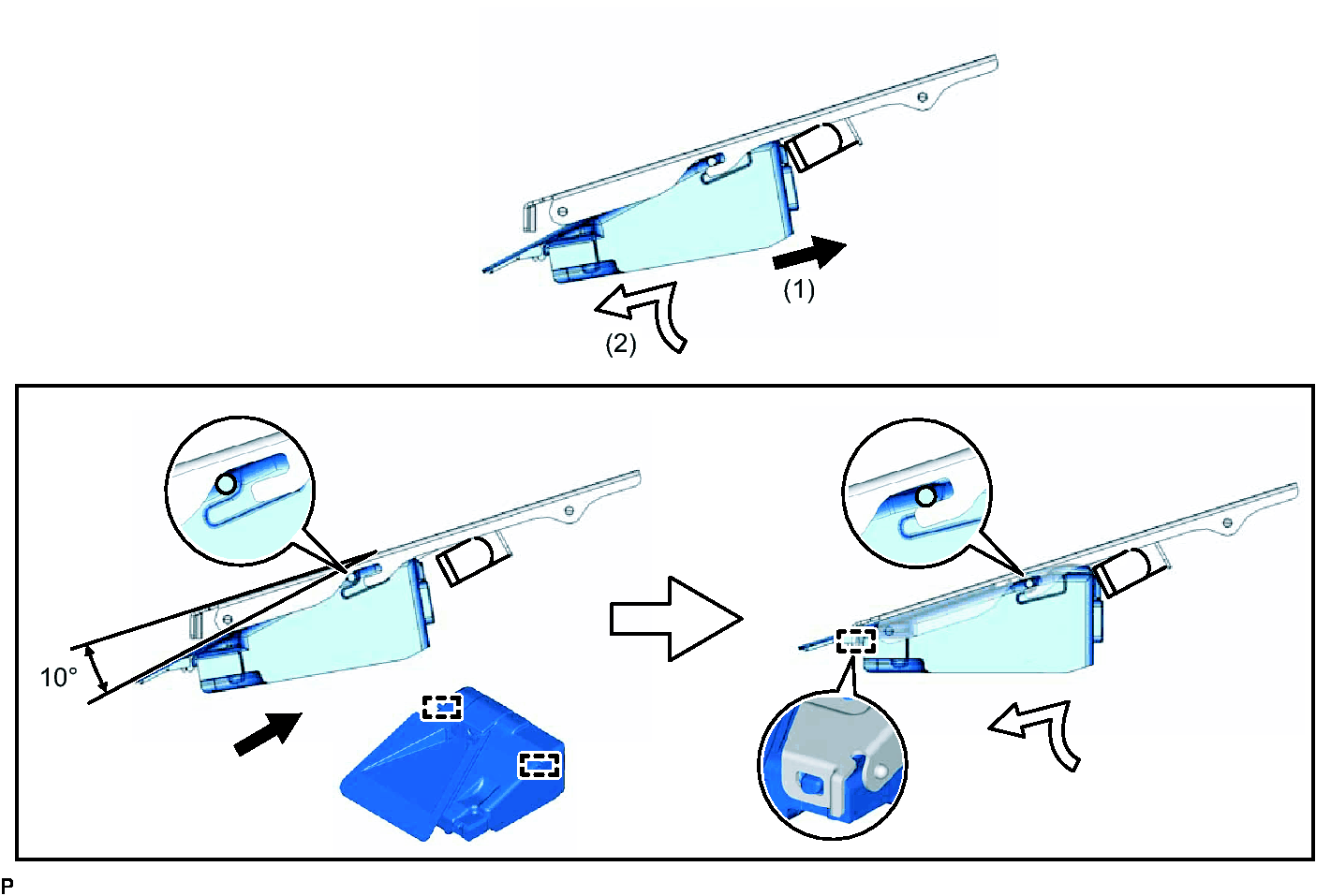

      Fig 2: Identifying Lane Departure Warning Camera Guides
      GTY407009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the camera lens.

    3. Engage the guide as shown in the illustration.
    4. Connect the connector and install the lane departure warning camera.
  2. INSTALL LANE DEPARTURE WARNING CAMERA COVER
    1. Engage the 4 guides and install the lane departure warning camera cover as shown in the illustration.

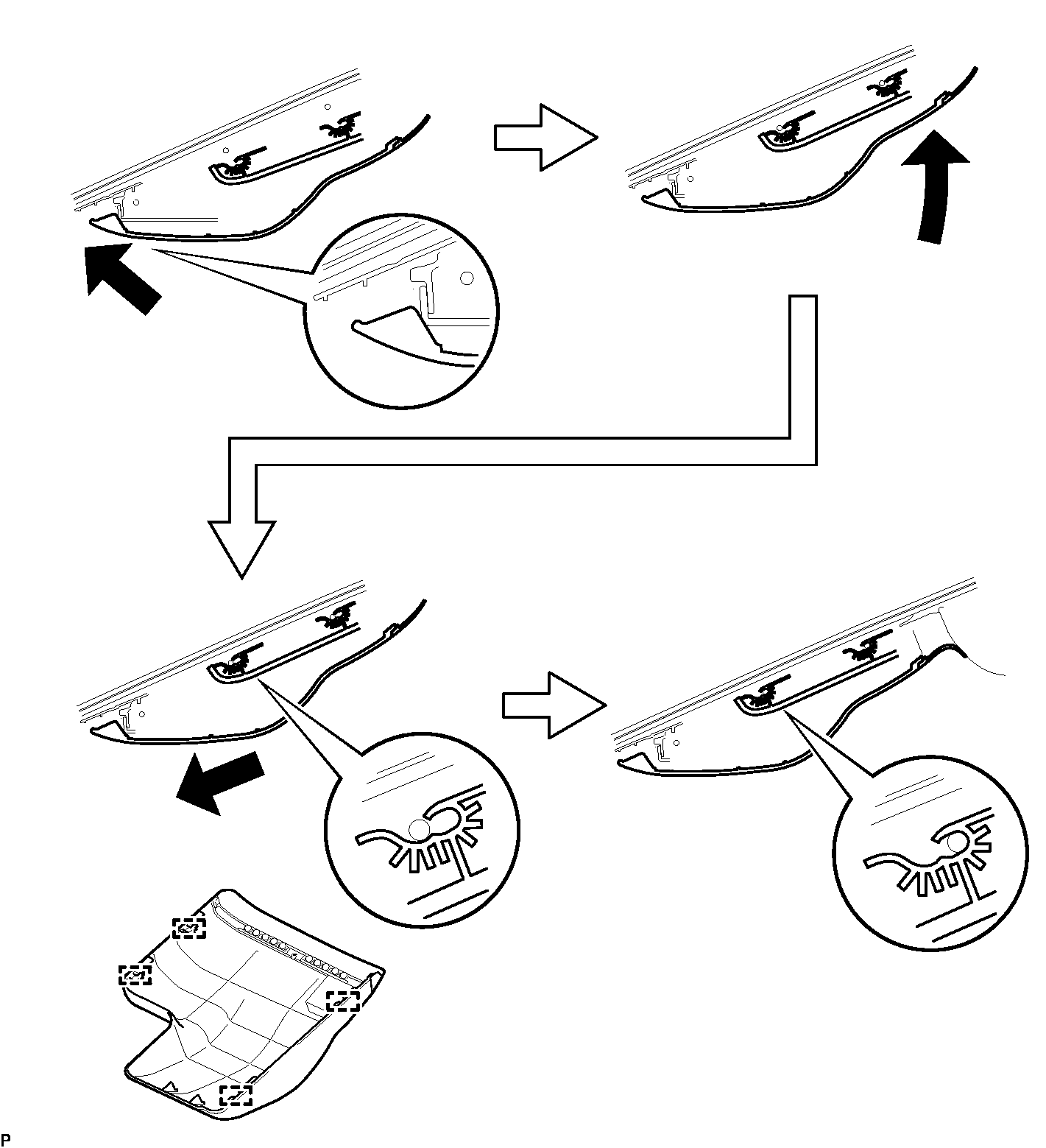

      Fig 3: Installing Lane Departure Warning Camera Cover
      GTY417920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT LANE DEPARTURE WARNING CAMERA COVER
    1. Check the clearance of area A.
      Fig 4: Inspecting Lane Departure Warning Camera Cover
      GTY399476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      STANDARD CLEARANCE

      Area Measurement
      A 1.0 to 3.0 mm (0.0394 to 0.118 in.)

      HINT:

      If the result is not as specified, the guides are not engaged properly. Reinstall the lane departure warning camera cover.

    2. Check that the lip of the lane departure warning camera cover is as shown in the illustration.
      Fig 5: Inspecting Lane Departure Warning Camera Cover Lip
      GTY404755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to push in the lip of the lane departure warning camera cover as it is soft.

  4. ADJUST LANE DEPARTURE WARNING CAMERA  See step  1
