Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TIRE PRESSURE WARNING RESET SWITCH  . Refer to INSTALLATION [08/2013 - ] - Step 1
  2. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
    1. Check that the power switch is off.
    2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    3. Connect the airbag connector to the lower No. 1 instrument panel airbag assembly.

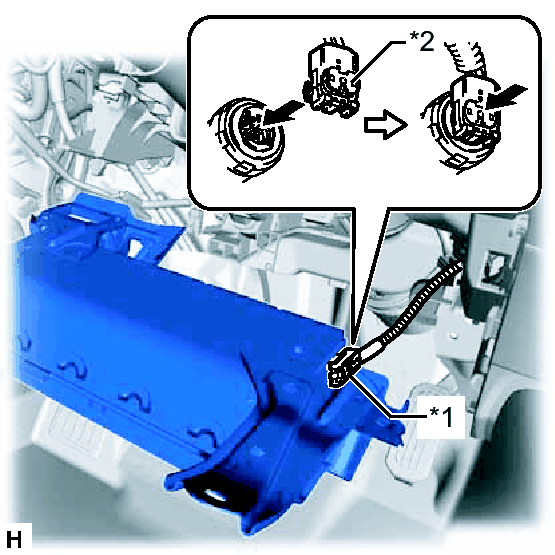

      Fig 1: Identifying Airbag Connector Lock
      GTY417493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Airbag Connector
      *2 Airbag Connector Lock
      NOTE:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    4. Push in the airbag connector lock to install the airbag connector.
    5. Engage the 2 claws to connect the DLC3.
    6. Connect the connector and engage the clamp to install the wire harness.
    7. Engage the 2 hooks to temporarily install the lower No. 1 instrument panel airbag assembly.
    8. Install the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION [08/2013 - ] - Step 29
  4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 30
  5. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION [08/2013 - ] - Step 31
  6. INSTALL FRONT DOOR OPENING TRIM COVER LH  . Refer to INSTALLATION [08/2013 - ] - Step 31
  7. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION [08/2013 - ] - Step 32
  8. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION [08/2013 - ] - Step 33
  9. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION [08/2013 - ] - Step 38
  10. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .

  11. INSTALL LUGGAGE TRIM SERVICE HOLE COVER  . Refer to INSTALLATION [08/2013 - ] - Step 3
  12. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [08/2013 - ]

  13. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [08/2013 - ]
