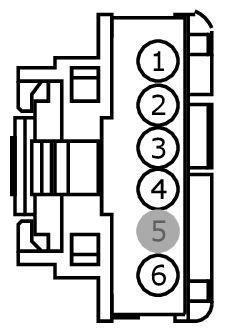

Connector End View C3044 - Rear Air Distribution Door Actuator
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION
REAR AIR DISTRIBUTION DOOR ACTUATOR
COLOR
HARNESS
19949
BASE PART #
PART# N/A
SERVICE PIGTAIL
SEE BELOW
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CHA21 (GY) | 22 | CTRL MOD. - REAR CLIMATE # DOOR MOTOR AIR BYPASS COIL 2/B / OPEN (IF PLUS) | |
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 4 | VH464 (GY-BN) | 22 | SENSOR - DOOR POSITION REAR MODE | |
| 5 | * | * | Not Used | |
| 6 | CHA20 (BU-GN) | 22 | CTRL MOD. - REAR CLIMATE # DOOR MOTOR AIR BYPASS COIL 1/A / CLOSE (IF PLUS) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1419 |
Service Part Number: FU2Z-14S411-KA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door |
