Section 478 (OEM Wiring Diagrams Component Testing)
>>
Component Testing
>>
10 - Way Power Seat - Passenger
10 - Way Power Seat - Passenger
WARNING:
This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

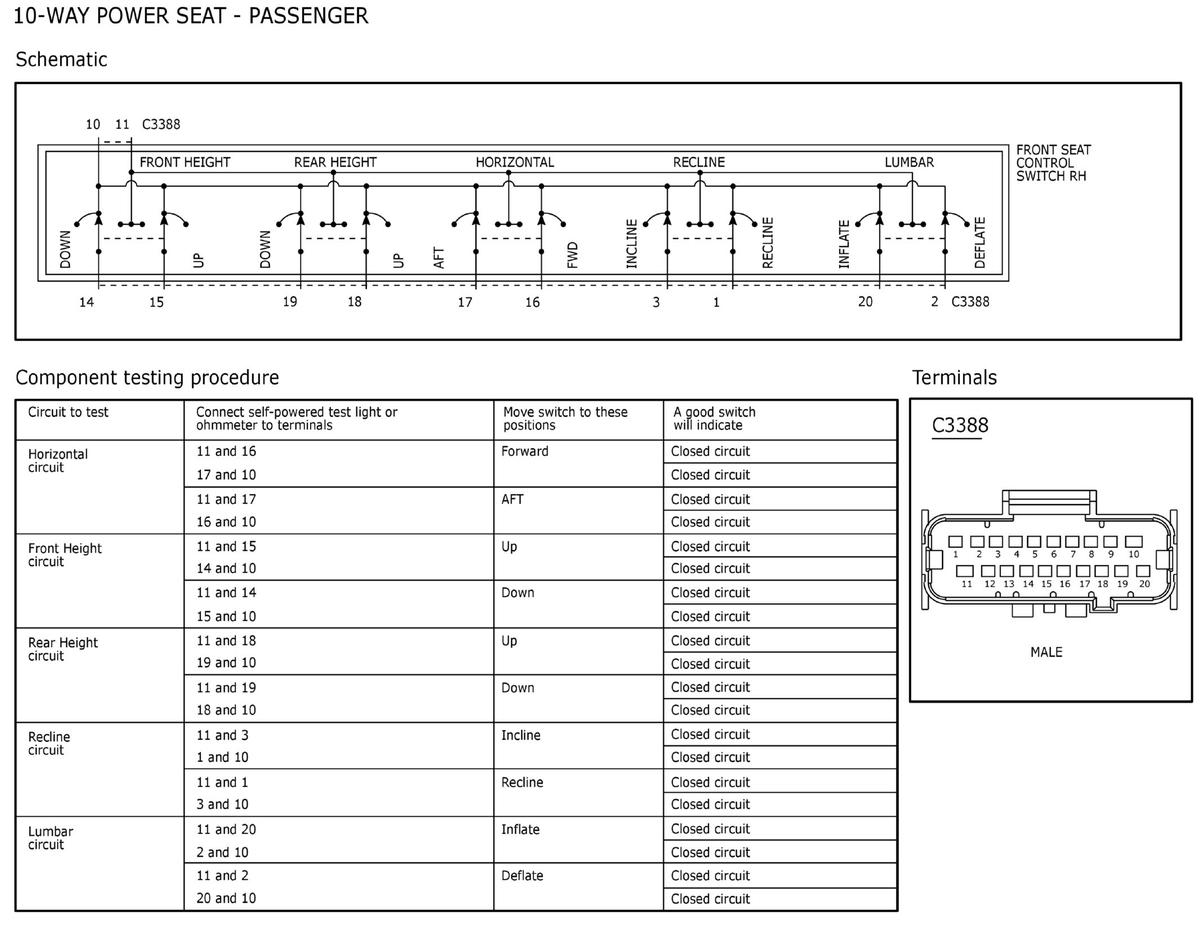

Fig 1: 10 - Way Power Seat - Passenger
Courtesy of FORD MOTOR COMPANY
