Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

All seats

1.

Remove the front seat. Refer to Seat - Front .

Navigator front seat

2.

Remove the side shield cover from the cushion side shield.
1. 1.

  Release the side shield cover retainers.
1. 2.

  Disconnect the electrical connectors.

GFD137561

Courtesy of FORD MOTOR COMPANY

3.

Remove the cushion side shield front screw.

GFD137554

Courtesy of FORD MOTOR COMPANY

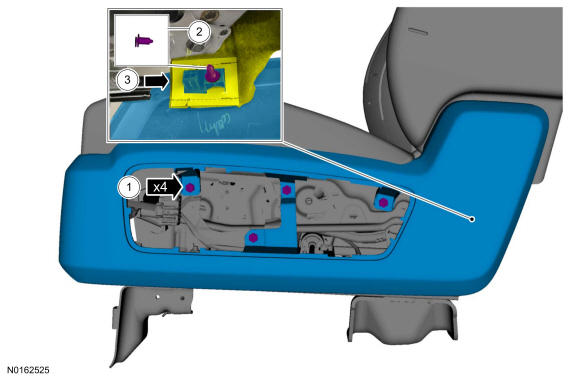

4.

NOTE: For installation, hook the seat cushion cover flap at the rear outboard corner to the cushion side shield.

Remove the cushion side shield.
1. 1.

  Remove the screws.
1. 2.

  Release the pin-type retainer from the seat track.
1. 3.

  Release the seat cushion cover from the cushion side shield.

GFD137601

Courtesy of FORD MOTOR COMPANY

Expedition front seat

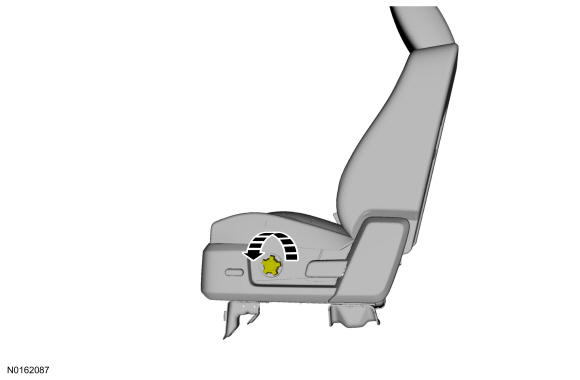

5.

If equipped, adjust the manual lumbar to the fully relaxed position.

GFD137551

Courtesy of FORD MOTOR COMPANY

6.

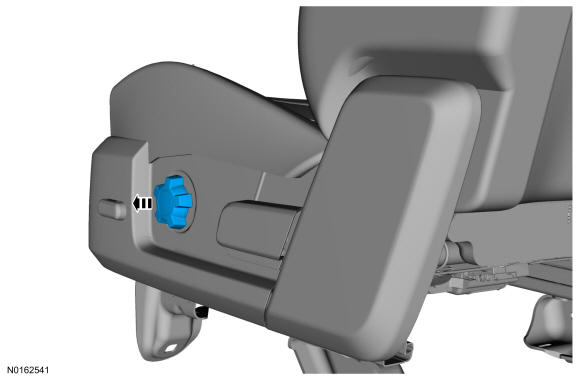

If equipped, remove the manual lumbar knob.

GFD137552

Courtesy of FORD MOTOR COMPANY

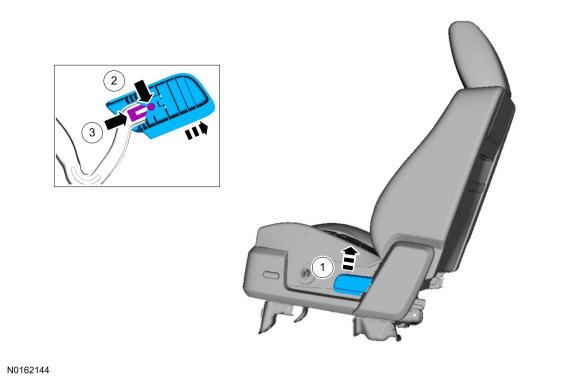

7.

If equipped, remove the recliner handle.
1. 1.

  Position the recliner handle upward.
1. 2.

  Remove the screw.
1. 3.

  Release the locking tab.

GFD137553

Courtesy of FORD MOTOR COMPANY

8.

Remove the side shield cover front screw.

GFD137554

Courtesy of FORD MOTOR COMPANY

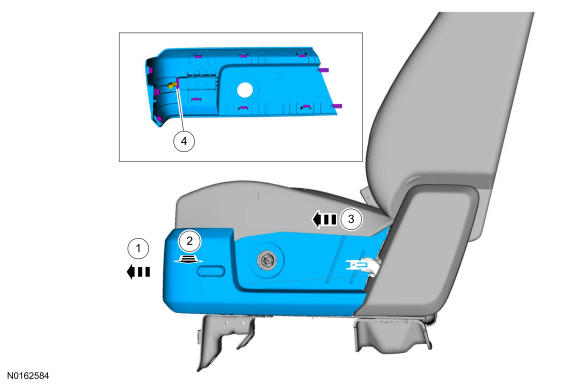

9.

NOTE: Side shield cover with a seat control switch, manual lumbar and recliner shown, others similar.

Remove the side shield cover.
1. 1.

  Pull forward on the front of the side shield cover to release the front retainers.
1. 2.

  Pull outward on the side shield cover to release the side retainers.
1. 3.

  Pull forward to release the side shield cover rear guides.
1. 4.

  If equipped, disconnect the electrical connector(s).

GFD137555

Courtesy of FORD MOTOR COMPANY

10.

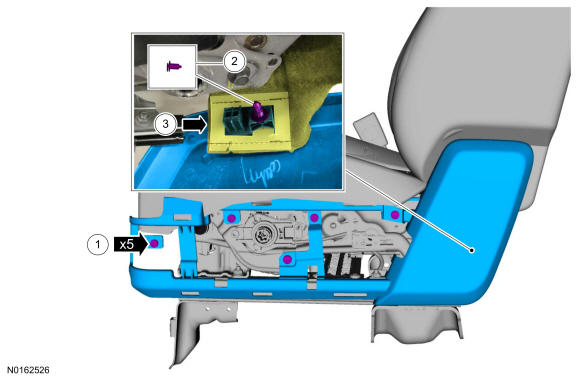

NOTE: For installation, hook the seat cushion cover flap at the rear outboard corner to the cushion side shield.

Remove the cushion side shield.
1. 1.

  Remove the screws.
1. 2.

  Release the pin-type retainer from the seat track.
1. 3.

  Release the seat cushion cover from the cushion side shield.

GFD137556

Courtesy of FORD MOTOR COMPANY

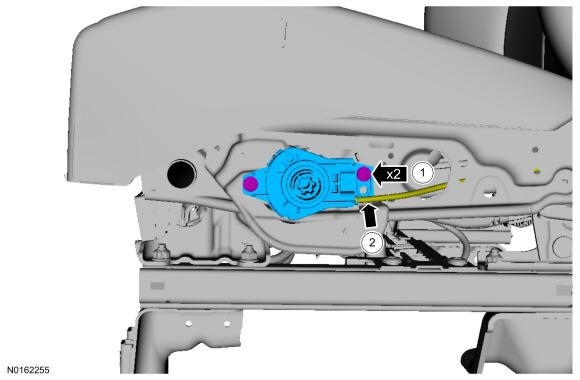

11.

NOTE: Note cable routing for correct installation.

Remove the manual lumbar actuator.
1. 1.

  Remove the screws and position lumbar actuator aside.
1. 2.

  Detach and route out the lumbar cable from the seat track.

GFD137557

Courtesy of FORD MOTOR COMPANY

All seats

12.

Release the backrest cover lower retainers.

GFD137602

Courtesy of FORD MOTOR COMPANY

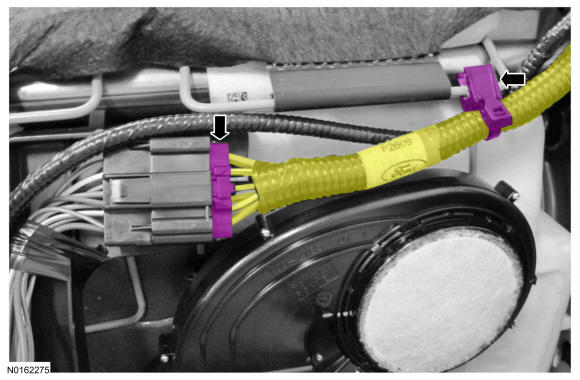

13.

If equipped, position the seat backrest wire harness aside.
- Disconnect the backrest wiring harness electrical connector.
- Release the wire harness retainer.

GFD137603

Courtesy of FORD MOTOR COMPANY

14.

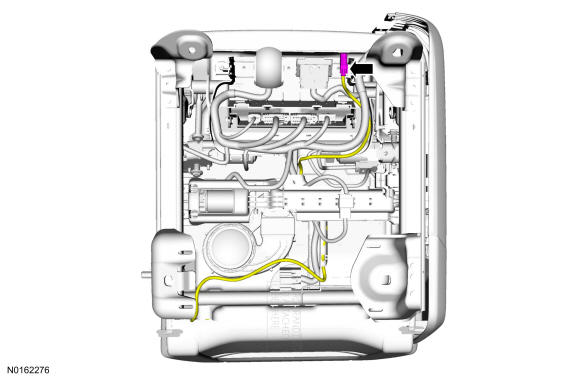

Release the electrical connector retainer and position the side airbag wire harness aside.

GFD137604

Courtesy of FORD MOTOR COMPANY

15.

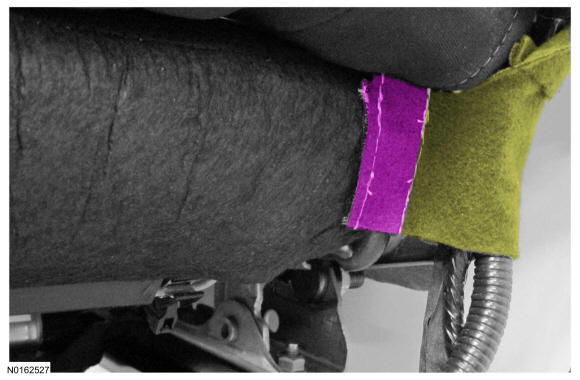

Release the hook and loop fastener and position the cushion cover aside.

GFD137605

Courtesy of FORD MOTOR COMPANY

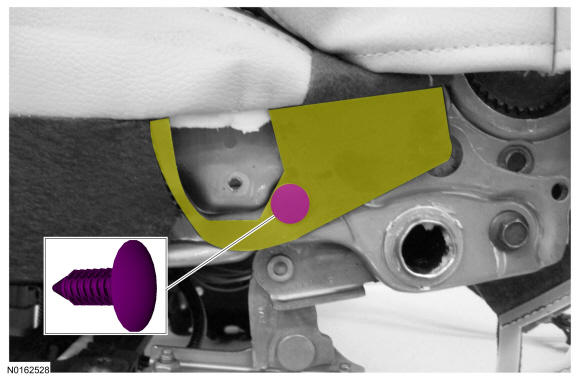

16.

Remove the pin-type retainer and position the outboard side of the cushion cover upward.

GFD137606

Courtesy of FORD MOTOR COMPANY

17.

Position the inboard side of the cushion cover upward.

GFD137607

Courtesy of FORD MOTOR COMPANY

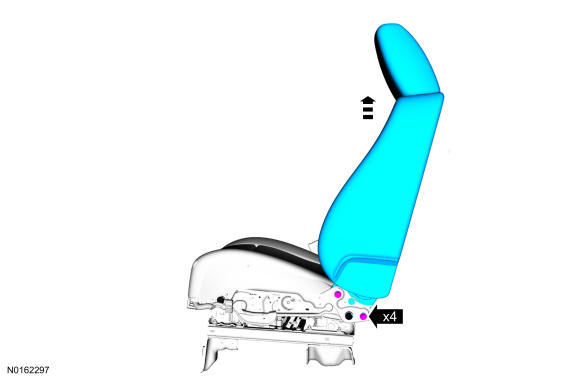

18.

Remove the bolts and the seat backrest.
- To install, tighten to 45 Nm (33 lb-ft).

GFD137608

Courtesy of FORD MOTOR COMPANY

19.

To install, reverse the removal procedure.
