Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

Expedition

1.

Remove the front cover. Refer to Bumpers .

2.

Remove the front park aid sensor.
1. 1.

  Disconnect the park aid sensor electrical connector.
1. 2.

  Release the tabs.
1. 3.

  Remove the front park aid sensor.

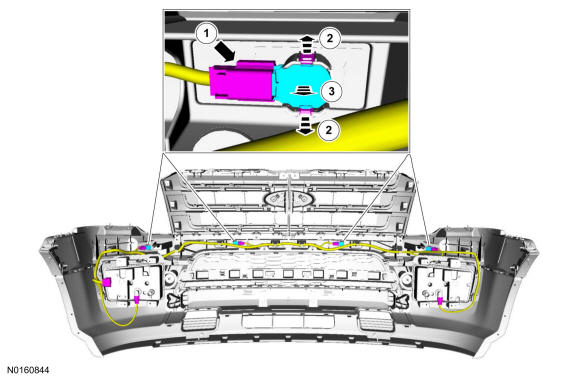

GFD136848

Courtesy of FORD MOTOR COMPANY

Navigator

3.

Remove the front cover. Refer to Bumpers .

4.

Remove the front park aid sensor.
1. 1.

  Disconnect the park aid sensor electrical connector.
1. 2.

  Release the tabs.
1. 3.

  Remove the front park aid sensor.

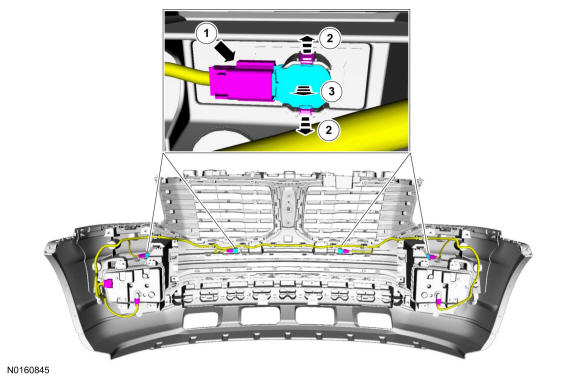

GFD136849

Courtesy of FORD MOTOR COMPANY

Installation

1.

To install, reverse the removal procedure.

2.

Carry out the azimuth and elevation system checks. Refer to Azimuth System Check and Elevation System Check .
