Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Left Hand (LH) shown, Right Hand (RH) similar.

  1. 1.

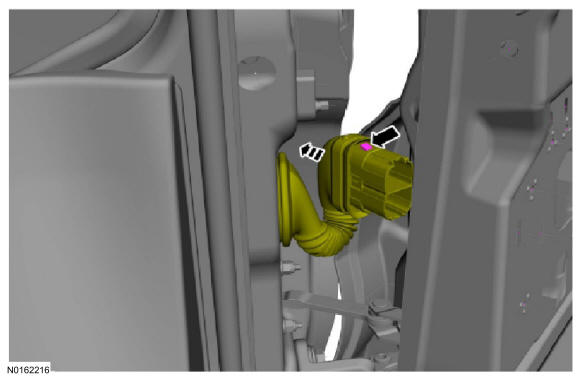

    Disconnect the electrical connector.
GFD137137Courtesy of FORD MOTOR COMPANY

  1. 2.

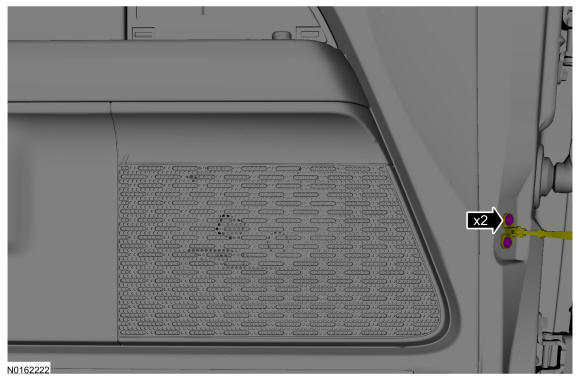

    Remove the door check arm-to-door screws.
    • To install, tighten to 12 Nm (22 lb-ft).
GFD137138Courtesy of FORD MOTOR COMPANY

  1. 3.

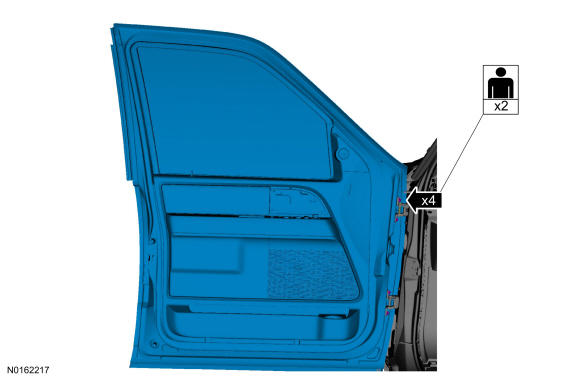

    NOTE: An assistant is necessary for the removal of the door.

    Remove the door hinge-to-door bolts.

    • To install, tighten to 30 Nm (22 lb-ft).
GFD137139Courtesy of FORD MOTOR COMPANY

  1. 4.

    To install, reverse the removal procedure.

  1. 5.

    Check the door to body alignment. Align the door as necessary. Refer to Door Alignment - Front .
