Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the front bumper cover. Refer to
Bumpers
.
- 2.

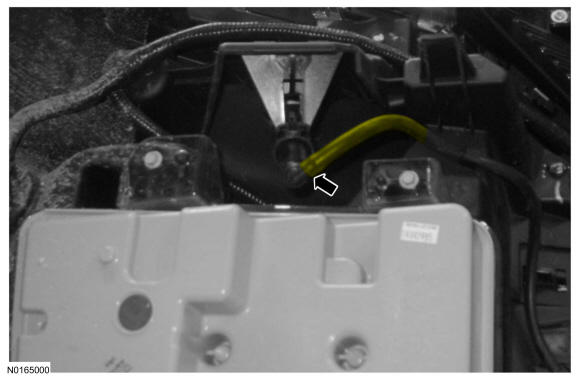

Remove the washer hose.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

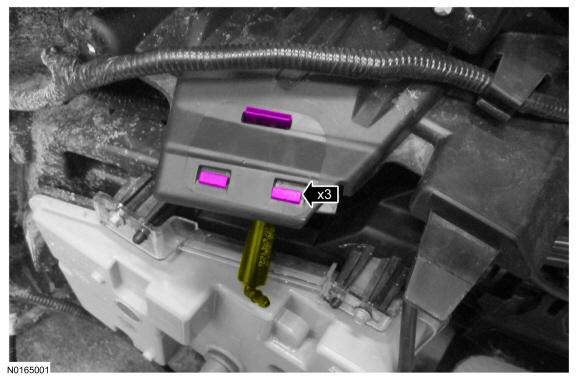

Release the headlamp washer jet clips.
 Courtesy of FORD MOTOR COMPANY
|
- 4.

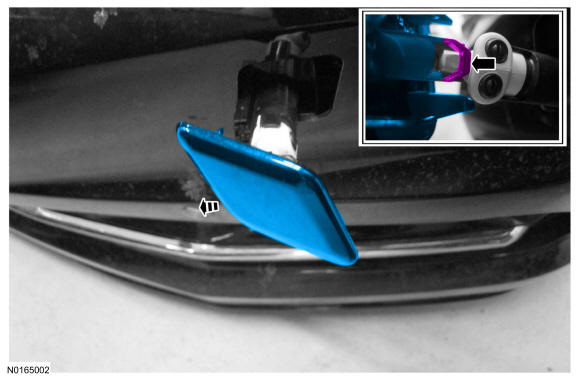

Release the clip and remove the headlamp washer jet cover.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

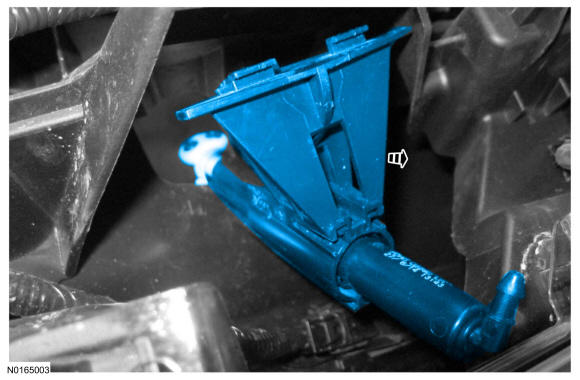

Remove the headlamp washer jet.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
To install, reverse the removal procedure.
