Removal [08/2013 - ]
- PRECAUTION WARNING:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION [08/2013 - ] .
NOTE:After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notices before proceeding with work. Refer to PRECAUTION [08/2013 - ] .
- REMOVE LUGGAGE TRIM SERVICE HOLE COVER . Refer to REMOVAL [08/2013 - ] - Step 2
- DISCONNECT CABLE FROM AUXILIARY BATTERY NEGATIVE TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the auxiliary battery negative (-) terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .
- REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL . Refer to REMOVAL [08/2013 - ] - Step 14
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 4 .
- REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 5 .
- REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure as for the LH side. Refer to REMOVAL [08/2013 - ] - Step 6 .
- REMOVE INSTRUMENT SIDE PANEL RH . Refer to REMOVAL [08/2013 - ] - Step 35
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 36
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 9
- REMOVE INSTRUMENT PANEL BOX DOOR COVER . Refer to REMOVAL [08/2013 - ] - Step 38
- REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 39
- REMOVE GLOVE BOX LIGHT ASSEMBLY

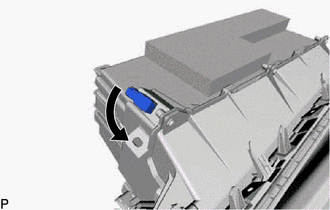

- Lift and turn the glove box light assembly in the direction indicated by the arrow shown in the illustration, and remove it.
