Removal [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

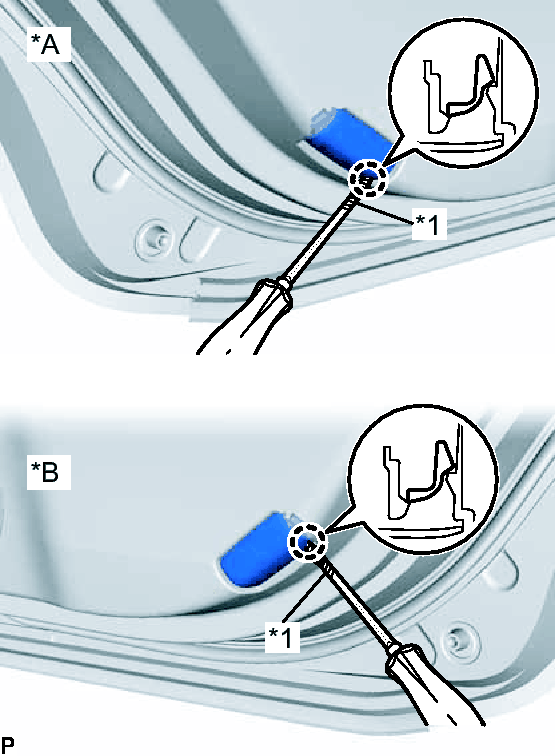

- REMOVE COURTESY LIGHT ASSEMBLY (for Front Door)
- Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *A |
for LH Side |
| *B |
for RH Side |
| *1 |
Protective Tape |
- Disconnect the connector and remove the courtesy light assembly.

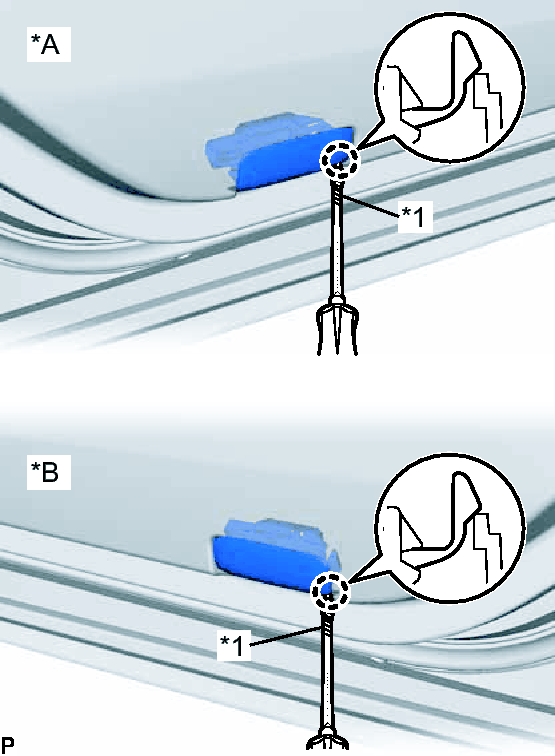

- REMOVE COURTESY LIGHT ASSEMBLY (for Rear Door)
- Using a screwdriver with its tip wrapped with protective tape, disengage the claw.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *A |
for LH Side |
| *B |
for RH Side |
| *1 |
Protective Tape |
- Disconnect the connector and remove the courtesy light assembly.
- REMOVE COURTESY LIGHT BULB
- Disengage the 2 claws and remove the courtesy light cover from the courtesy light lens.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Remove the courtesy light bulb from the courtesy light lens.
