Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT SEAT ASSEMBLY RH

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE AUDIO AMPLIFIER COVER  See step  2
  3. REMOVE NO. 3 DCM (TELEMATICS TRANSCEIVER) BRACKET
    1. Disconnect the connector and remove the nut.

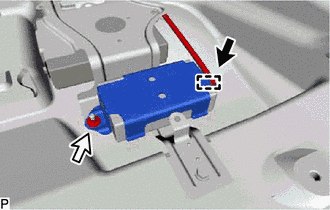

      Fig 1: Locating No. 3 DCM (Telematics Transceiver) Bracket Connector & Nut
      GTY401019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and remove the No. 3 DCM (telematics transceiver) bracket.
  4. REMOVE BACK-UP BATTERY
