Inspection [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT FRONT DOOR LOCK ASSEMBLY LH
- Check the operation of the door lock motor.
- Apply auxiliary battery voltage and check the operation of the door lock motor.
OK
Connection Result Auxiliary battery positive (+) → Terminal 4 (L)
Auxiliary battery negative (-) → Terminal 1 (UL)Locks Auxiliary battery positive (+) → Terminal 1 (UL)
Auxiliary battery negative (-) → Terminal 4 (L)Unlocks TEXT IN ILLUSTRATION*a Component without harness connected
(Front Door Lock Assembly LH)*b Unlock *c Lock If the result is not as specified, replace the front door lock assembly LH.
- Apply auxiliary battery voltage and check the operation of the door lock motor.
- Check the operation of the door unlock detection switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 7 (E) - 8 (LSSR) Locked 10 kΩ or higher 7 (E) - 8 (LSSR) Unlocked Below 1 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Door Lock Assembly LH)*b Unlock *c Lock If the result is not as specified, replace the front door lock assembly LH.
- Measure the resistance according to the value(s) in the table below.

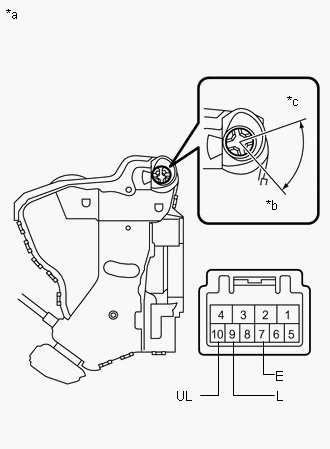

- Check the operation of the door key lock and unlock switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 9 (L) - 7 (E) Held to lock side Below 1 Ω 9 (L) - 7 (E) Neutral or held to unlock side 10 kΩ or higher 10 (UL) - 7 (E) Held to unlock side Below 1 Ω 10 (UL) - 7 (E) Neutral or held to lock side 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(Front Door Lock Assembly LH)*b Unlock *c Lock If the result is not as specified, replace the front door lock assembly LH.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the door lock motor.
- INSPECT FRONT DOOR LOCK ASSEMBLY RH
- Check the operation of the door lock motor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Apply auxiliary battery voltage and check the operation of the door lock motor.
OK
Connection Result Auxiliary battery positive (+) → Terminal 4 (L)
Auxiliary battery negative (-) → Terminal 1 (UL)Locks Auxiliary battery positive (+) → Terminal 1 (UL)
Auxiliary battery negative (-) → Terminal 4 (L)Unlocks TEXT IN ILLUSTRATION*a Component without harness connected
(Front Door Lock Assembly RH)*b Unlock *c Lock If the result is not as specified, replace the front door lock assembly RH.
- Apply auxiliary battery voltage and check the operation of the door lock motor.
- Check the operation of the door unlock detection switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 7 (LSSR) - 8 (E) Locked 10 kΩ or higher 7 (LSSR) - 8 (E) Unlocked Below 1 Ω TEXT IN ILLUSTRATION*a Component without harness connected
(Front Door Lock Assembly RH)*b Unlock *c Lock If the result is not as specified, replace the front door lock assembly RH.
- Measure the resistance according to the value(s) in the table below.
- Check the operation of the door lock motor.
