Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEAT CUSHION ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 6
REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY
1. Disconnect the connector.

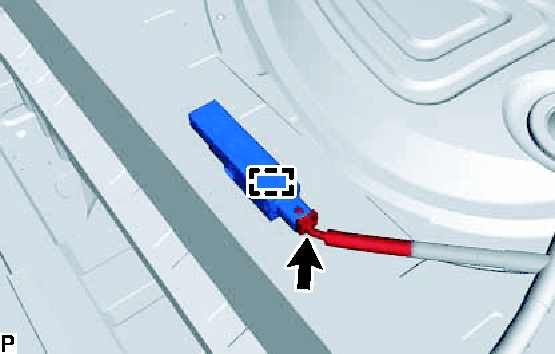

  Fig 1: Identifying No. 1 Indoor Electrical Key Antenna Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the clamp and remove the No. 1 indoor electrical key antenna assembly.
  NOTE:
  Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
