Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEATBACK ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE REAR DOOR SCUFF PLATE LH . Refer to REMOVAL [08/2013 - ] - Step 8
REMOVE REAR DOOR SCUFF PLATE RH . Refer to REMOVAL [08/2013 - ] - Step 15
REMOVE REAR SEAT SIDE GARNISH LH . Refer to REMOVAL [08/2013 - ] - Step 18
REMOVE REAR SEAT SIDE GARNISH RH . Refer to REMOVAL [08/2013 - ] - Step 20
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 19
REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH . Refer to REMOVAL [08/2013 - ] - Step 21
DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 6
DISCONNECT REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY RH . Refer to REMOVAL [08/2013 - ] - Step 7
REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 2
DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH . Refer to REMOVAL [08/2013 - ] - Step 9
REMOVE CENTER STOP LIGHT SET (w/o Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 1
REMOVE REAR SEAT SHOULDER BELT HOLE COVER . Refer to REMOVAL [08/2013 - ] - Step 13
REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER . Refer to REMOVAL [08/2013 - ] - Step 14
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 15
REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) . Refer to REMOVAL [08/2013 - ] - Step 16
REMOVE BLIND SPOT MONITOR BUZZER
1. Disengage the 2 clamps.

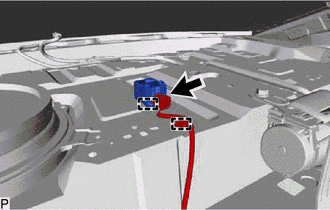

  Fig 1: Identifying Blind Spot Monitor Buzzer Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the blind spot monitor buzzer.
