Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL [08/2013 - ] - Step 14
  2. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL [08/2013 - ] - Step 4
  3. REMOVE COWL SIDE TRIM BOARD LH  . Refer to REMOVAL [08/2013 - ] - Step 5
  4. REMOVE FRONT DOOR OPENING TRIM COVER LH  . Refer to REMOVAL [08/2013 - ] - Step 6
  5. REMOVE INSTRUMENT SIDE PANEL LH  . Refer to REMOVAL [08/2013 - ] - Step 21
  6. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 22
  7. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL  . Refer to REMOVAL [08/2013 - ] - Step 23
  8. REMOVE HEADLIGHT LEVELING ECU ASSEMBLY
    1. Disconnect the connector.

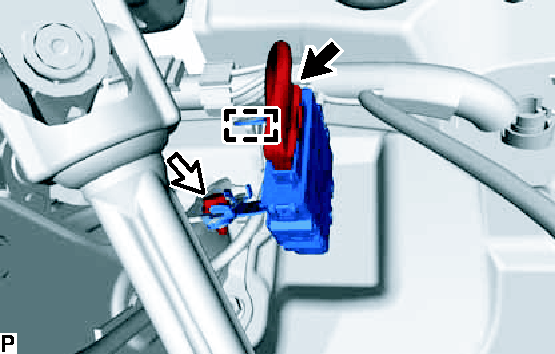

      Fig 1: Identifying Headlight Leveling ECU Assembly
      GTY414634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the bolt and headlight leveling ECU assembly.
