Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE AUTOMATIC LIGHT CONTROL SENSOR
1. Disengage the 2 claws.

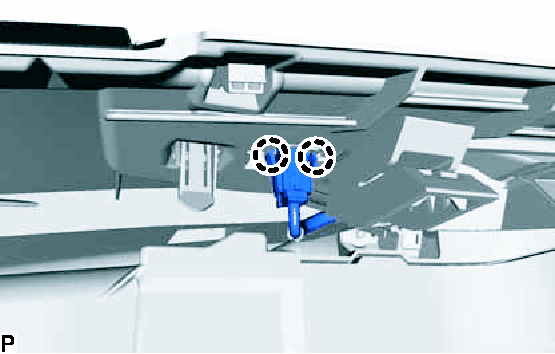

  Fig 1: Identifying Solar Sensor (Automatic Light Control Sensor) Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the automatic light control sensor.

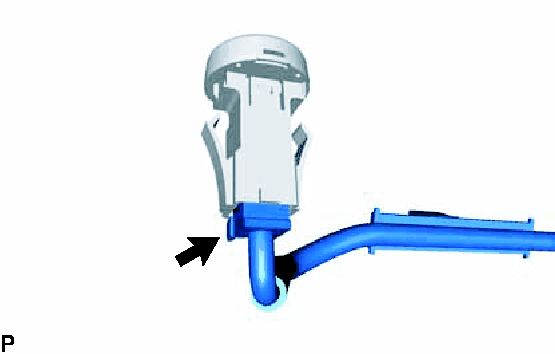

  Fig 2: Identifying Solar Sensor (Automatic Light Control Sensor) Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
