Reassembly [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

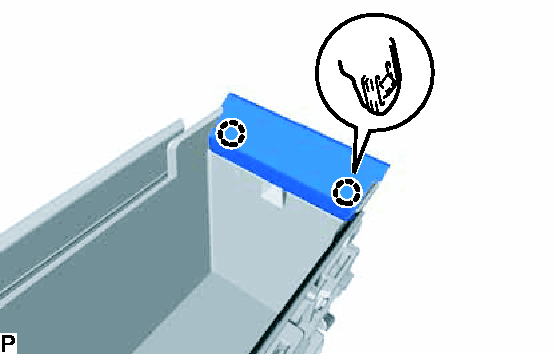

INSTALL NO. 2 CONSOLE COMPARTMENT DOOR CUSHION
1. Install the No. 2 console compartment door cushion.

  Fig 1: Identifying No. 2 Console Compartment Door Cushion
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the RH side and LH side.

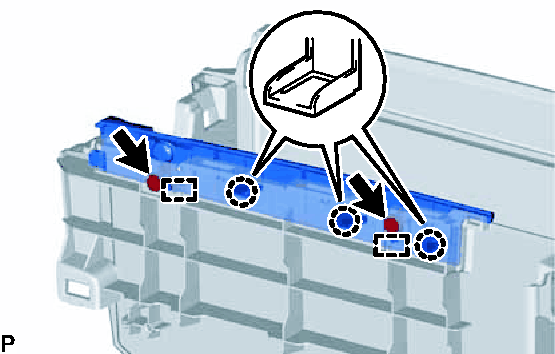

INSTALL UPPER NO. 1 BOX PLATE
1. Engage the guide and 2 claws.

  Fig 2: Identifying Upper No. 1 Box Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 claws and 2 guides.

  Fig 3: Identifying Upper No. 1 Box Plate Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the upper No. 1 box plate with the 2 screws.
INSTALL UPPER NO. 2 BOX PLATE
HINT:

Use the same procedure as for the upper No. 1 box plate.

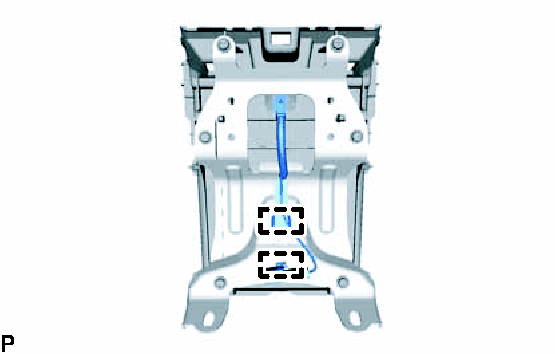

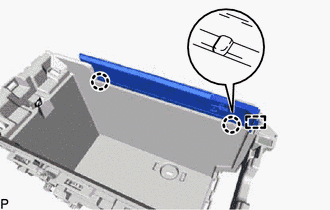

INSTALL NO. 2 INSTRUMENT PANEL WIRE
1. Engage the 2 clamps to install the No. 2 instrument panel wire.

  Fig 4: Identifying No. 2 Instrument Panel Wire Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY . Refer to INSTALLATION [08/2013 - ] - Step 1
INSTALL FRONT UPPER CONSOLE PANEL GARNISH
1. Engage the 2 claws to install the front upper console panel garnish.

  Fig 5: Identifying Front Upper Console Panel Garnish Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

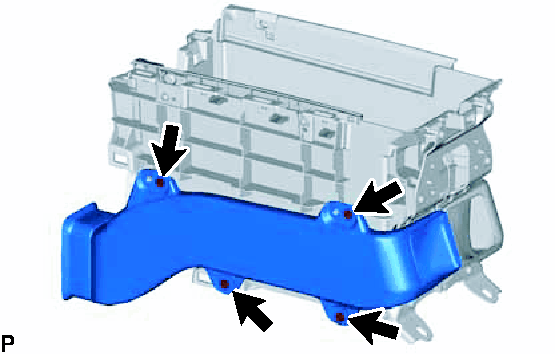

INSTALL NO. 3 CONSOLE BOX DUCT
1. Install the No. 3 console box duct with the 4 screws.

  Fig 6: Identifying No. 3 Console Box Duct Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 4 CONSOLE BOX DUCT
HINT:

Use the same procedure as for the No. 3 console box duct.

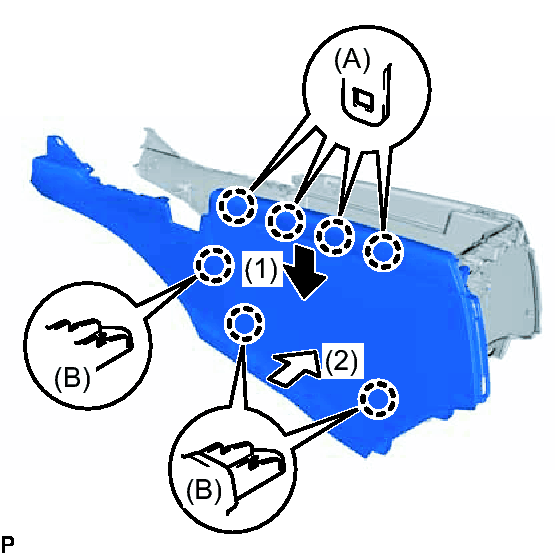

INSTALL NO. 1 BOX SIDE PANEL
1. Engage the 4 claws (A) by moving the No. 1 box side panel in the direction indicated by the arrow (1) shown in the illustration.

  Fig 7: Identifying No. 1 Box Side Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 claws (B) by moving the No. 1 box side panel in the direction indicated by the arrow (2) shown in the illustration to install the No. 1 box side panel.
INSTALL NO. 2 BOX SIDE PANEL
HINT:

Use the same procedure as for the No. 1 box side panel.

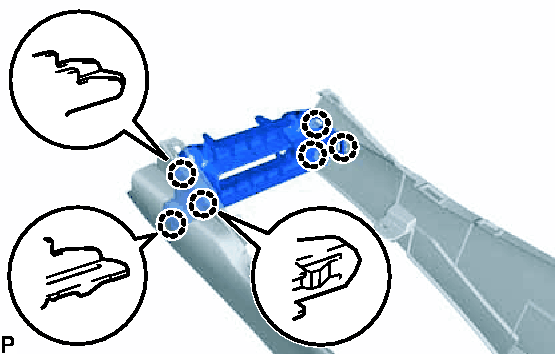

INSTALL NO. 1 CONSOLE BOX RETAINER
1. Engage the 6 claws to install the No. 1 console box retainer.

  Fig 8: Identifying No. 1 Console Box Retainer Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

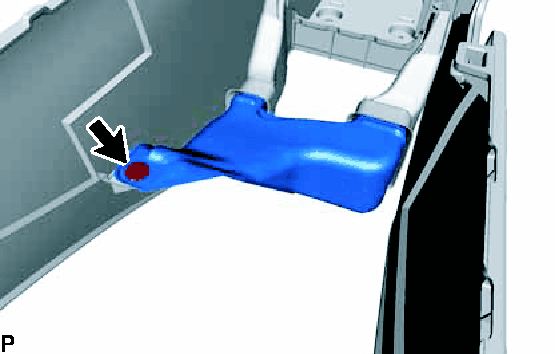

INSTALL NO. 2 CONSOLE BOX DUCT
1. Install the No. 2 console box duct with the clip.

  Fig 9: Identifying No. 2 Console Box Duct Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

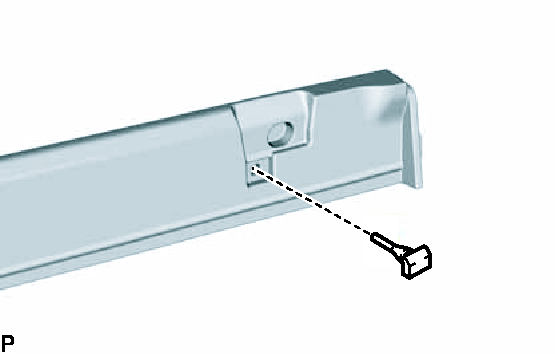

INSTALL NO. 1 CONSOLE COMPARTMENT DOOR CUSHION
1. Install the 2 No. 1 console compartment door cushions.

  Fig 10: Identifying No. 1 Console Compartment Door Cushions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

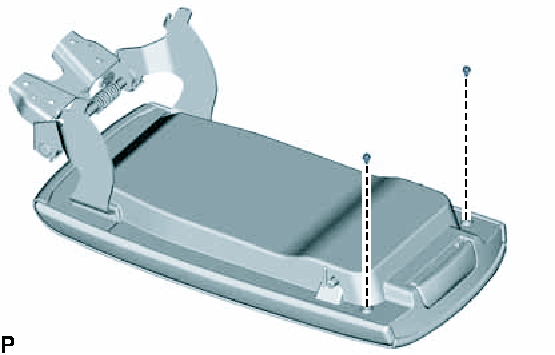

INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
1. Install the console compartment door sub-assembly with the 4 screws.

  Fig 11: Identifying Console Compartment Door Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

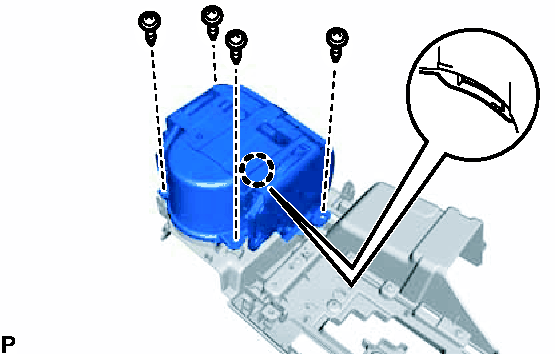

INSTALL INSTRUMENT PANEL CUP HOLDER SUB-ASSEMBLY
1. Engage the claw.

  Fig 12: Identifying Instrument Panel Cup Holder Sub-Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument panel cup holder sub-assembly with the 4 screws.

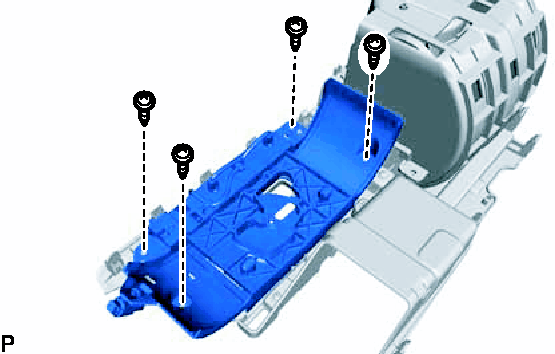

INSTALL SHIFT POSITION INDICATOR
1. Install the shift position indicator with the 4 screws.

  Fig 13: Identifying Shift Position Indicator Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

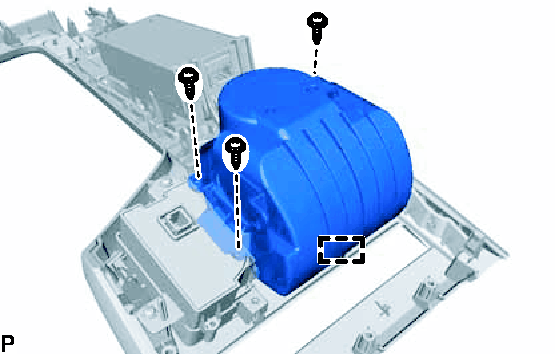

INSTALL INSTRUMENT PANEL CUP HOLDER
1. Engage the guide.

  Fig 14: Identifying Instrument Panel Cup Holder Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the instrument panel cup holder with the 3 screws.

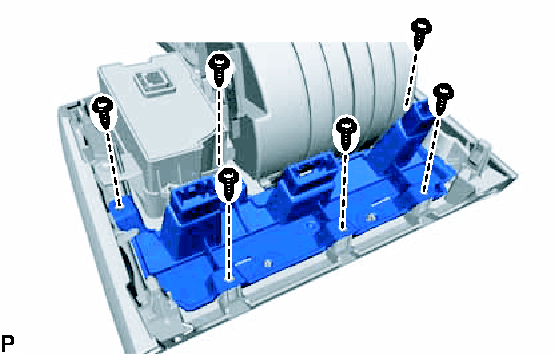

INSTALL SWITCH BASE
1. Install the switch base with the 6 screws.

  Fig 15: Identifying Switch Base Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
