INSTALL REAR CONSOLE BOX ASSEMBLY
1. Engage the 4 claws as shown in the illustration.

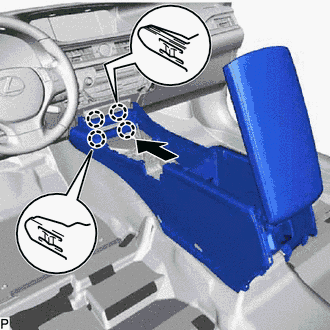

  Fig 1: Identifying Rear Console Box Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear console box assembly with the 4 bolts and 4 screws.
INSTALL NO. 3 BOX PANEL
1. Connect each connector.
2. Engage the 3 guides and 4 claws to install the No. 3 box panel as shown in the illustration.

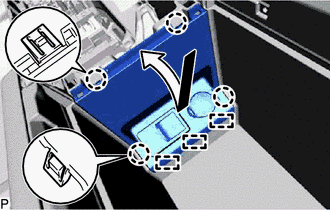

  Fig 2: Identifying No. 3 Box Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX CARPET
1. Install the console box carpet.
INSTALL CONSOLE BOX POCKET
1. Install the console box pocket.
INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
1. Connect each connector.
2. Engage the 6 claws, 5 clips and 4 guides to install the console rear end panel sub-assembly.
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
1. Connect the connector.
2. Engage the 10 claws and clip to install the upper console panel sub-assembly.
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
1. Turn the shift lever knob sub-assembly clockwise to install it.

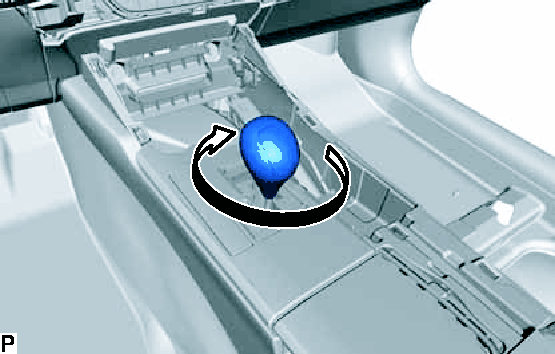

  Fig 3: Turning Shift Lever Knob Sub-Assembly Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE PANEL SUB-ASSEMBLY
1. Connect each connector.
2. Engage the clamp.
3. Engage the 7 claws and 4 clips to install the console panel sub-assembly.
4. Move the shift lever to P.
INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL See step 38
