Reassembly [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.

INSTALL NO. 6 ROCKER PANEL MOLDING PROTECTOR
1. for Front Side:
  1. Wipe off any tape adhesive residue with cleaner.
  2. Install a new No. 6 rocker panel molding protector as shown in the illustration.

    Fig 1: Installing No. 6 Rocker Panel Molding Protector (Front Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Attach the new No. 6 rocker panel molding protector to the line marked on the rocker panel molding.
2. for Rear Side:
  1. Wipe off any tape adhesive residue with cleaner.
  2. Install a new No. 6 rocker panel molding protector as shown in the illustration.

    Fig 2: Installing No. 6 Rocker Panel Molding Protector (Rear Side)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Attach the new No. 6 rocker panel molding protector to the line marked on the rocker panel molding.

INSTALL NO. 3 ROCKER PANEL MOLDING PROTECTOR

Wipe off any tape adhesive residue with cleaner.

Install 3 new No. 3 rocker panel molding protectors so they are centered within the markings on the rocker panel molding assembly.

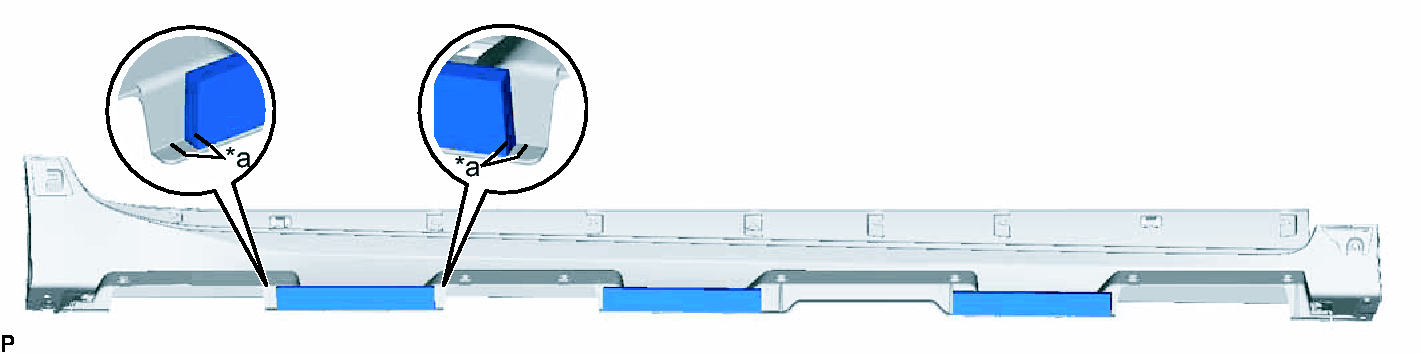

Fig 3: Identifying No. 3 Rocker Panel Molding Protector Markings

TEXT IN ILLUSTRATION

Marking
