Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL INJECTOR ASSEMBLY

    HINT:

    Perform "Inspection After Repair" after replacing the fuel injector assembly. Refer to INITIALIZATION [08/2013 - ] .

    1. Apply a light coat of gasoline or spindle oil to new O-rings, and then install one onto each fuel injector assembly.
      Fig 1: Identifying Fuel Injector O-Ring
      GTY248486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
    2. Apply a light coat of gasoline or spindle oil to the contact surfaces of the new O-ring on each fuel injector assembly.
    3. While turning the fuel injector assembly left and right, install it onto the fuel delivery pipe.
      Fig 2: Identifying Fuel Injector Assembly
      GTY315569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure that the O-ring is not cracked or jammed when installing the fuel injector assembly. Refer to PRECAUTION [08/2013 - ] .

    4. Check that the fuel injector rotates smoothly. If the fuel injector assembly does not rotate, replace the O-ring.
  2. INSTALL FUEL DELIVERY PIPE
    1. Install 4 new injector vibration insulators to the cylinder head.

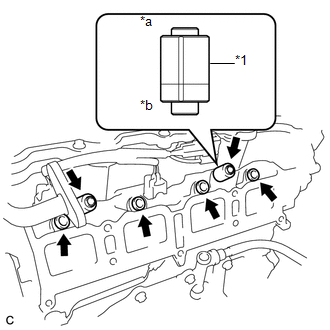

      Fig 3: Identifying Injector Vibration Insulators & Fuel Delivery Spacers
      GTY323037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Fuel Delivery Spacer
      *a Fuel Delivery Pipe Side
      *b Cylinder Head Side
    2. Install the 2 fuel delivery spacers onto the cylinder head.

      HINT:

      Install the fuel delivery spacer so that the longer protrusion is on the cylinder head side.

    3. Install the fuel delivery pipe with the 4 fuel injector assemblies and install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:
      • Do not drop the fuel injector assemblies when installing the fuel delivery pipe.
      • Check that the fuel injector assemblies rotate smoothly after installing the fuel delivery pipe.
    4. Connect the 4 fuel injector connectors.
  3. CONNECT FUEL TUBE SUB-ASSEMBLY
    1. Push the fuel tube connector onto the fuel pipe until the fuel tube connector makes a "click" sound.

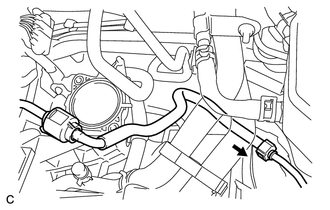

      Fig 4: Identifying Fuel Tube Connector & Fuel Pipe
      GTY315116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Before connecting the fuel tube connector and fuel pipe, check that there is no damage or foreign matter on the connecting part of the fuel pipe.
      • After connecting the fuel tube connector and fuel pipe, check that they are securely connected by trying to pull them apart.
    2. Install the No. 1 fuel pipe clamp.
  4. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [08/2013 - ]

  5. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [08/2013 - ] .

  6. INSTALL LUGGAGE TRIM SERVICE HOLE COVER  . Refer to INSTALLATION [08/2013 - ] - Step 3
  7. INSPECT FOR FUEL LEAK  . Refer to ON-VEHICLE INSPECTION [08/2013 - ] - Step 1
