Camshaft, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Audi S4, 2020 Audi A4, 2019 Audi S4, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The cylinder head cover sealing surfaces on the cylinder head must not be worked on.

During installation, all cable ties must be installed at the same location.

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to OVERVIEW - AIR FILTER HOUSING [4-Cylinder Direct Injection 2.0L 4V TFSI Engine] / AIR FILTER HOUSING, REMOVING AND INSTALLING [4-Cylinder Direct Injection 2.0L 4V TFSI Engine] .

-- Disconnect The Connectors:

GWWA15-11380Courtesy of AUDI OF AMERICA, LLC
  1. For Charge Air Pressure Actuator -V465-
  2. For Turbocharger Recirculation Valve -N249-

-- If installed, disconnect the connector -2- for the Oxygen Sensor after Catalytic Converter -G130- -1- and free up the wires. (There are different installation positions.)

Fig 1: Component location Oxygen Sensor after Catalytic Converter -G130- with Heater for Oxygen Sensor 1 after Catalytic Converter -Z29-
GWWA24-11366Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors and free up the wires.

GWWA15-11791Courtesy of AUDI OF AMERICA, LLC
  1. For Camshaft Position Sensor 3 -G300-
  2. For Heated Oxygen Sensor -G39-, to do so remove it from the bracket
  3. For EVAP Canister Purge Regulator Valve 1 -N80-

-- Remove the ignition coils with power output stages. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the cam adjustment actuator.

GWWA15-11794Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose -1- and the wire.

GWWA15-11896Courtesy of AUDI OF AMERICA, LLC

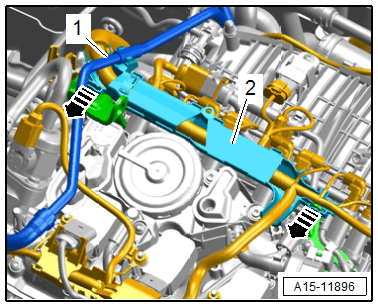

-- Release the catches in direction of -arrows-, remove the wiring duct -2- with the wiring harness and move to the side.

-- Loosen the hose clamp -2- and disconnect the hose for the EVAP system.

GWWA10-12047Courtesy of AUDI OF AMERICA, LLC

-- Lift the clip -3-, disconnect the coolant line -2- and free up from the cylinder head and push it toward the right side.

GWWA15-11793Courtesy of AUDI OF AMERICA, LLC

-- Remove the vacuum hose -4- and disconnect the vacuum line -1- for the Intake Manifold Runner Control Valve - N316- and free up from the cylinder head.

-- Remove the oil separator. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING / VACUUM PUMP, REMOVING AND INSTALLING [CYMC, DFVA, CWGD, DBPA, DECA] .

-- Remove the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Install the :T10531/3  . In the "TDC point" the flat area -1- points upward. Install the :T10531/4  . Turn the crankshaft with a 32 mm open end wrench 90° counter-clockwise out of "TDC".

Fig 2: Identifying Assembly Tool - Turning Over Tool T10531/3
GWWN15-10976Courtesy of AUDI OF AMERICA, LLC

-- Lock the intake camshaft pretension using the :T40266  in the direction of -arrow 1-, pull the :T40271/2  from the chain sprocket splines in the direction of -arrow 2- and bring the camshaft into the rest position.

Fig 3: Identifying Adapter T40266 And Intake Camshaft
GWWA15-11387Courtesy of AUDI OF AMERICA, LLC

-- Lock the exhaust camshaft pretension using the :T40266  in the direction of -arrow 1-, pull the :T40271/1  from the chain sprocket splines in the direction of -arrow 2- and bring the camshaft into the rest position.

Fig 4: Identifying Camshaft Locating Tool T40271/1
GWWA15-11388Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head cover bolts in -1 to 6- sequence.

Fig 5: Cylinder Head Cover Bolt Loosening Sequence
GWWA15-11493Courtesy of AUDI OF AMERICA, LLC

-- Carefully loosen the cylinder head cover -2- from the bonding with a screwdriver -1- and remove it together with the camshafts.

GWWA15-12197Courtesy of AUDI OF AMERICA, LLC
NOTE:

Pay attention that the camshafts do not fall out of the cylinder head cover.

-- Remove the camshaft and cover the open engine components.

-- If necessary for continuing work: Mark the roller rocker lever and hydraulic lifter for reinstallation, remove them and place on a clean surface.
