Overview - Cylinder Head: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Audi S4, 2020 Audi A4, 2019 Audi S4, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

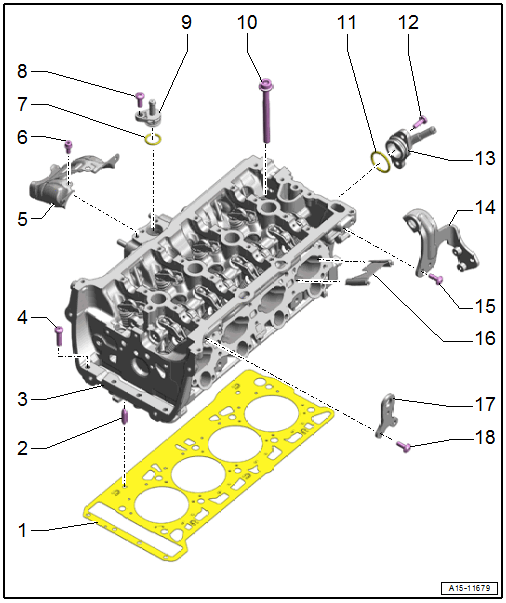

Fig 1: Exploded View Of Cylinder Head
GWWA15-11679Courtesy of AUDI OF AMERICA, LLC
  1. Cylinder Head Gasket
    • Always replace after removing.
    • Installed position: The part number faces the cylinder head
    • Change the coolant and engine oil after replacing
  2. Alignment Pin
    • Quantity: 2
  3. Cylinder Head
  4. Bolt
    • Tightening specification and sequence. Refer to Figure.
    • Always replace after removing.
    • Loosening. Refer to Figure.
  5. Heat Shield
  6. Bolt
    • First tightening 5 Nm
    • Second tightening 9 Nm
  7. O-ring
    • Always replace after removing.
    • Coat with coolant
  8. Bolt
    • 9 Nm
  9. Connection
    • For coolant hose
  10. Bolt
    • Tightening specifications and sequence. Refer to Figure.
    • Always replace after removing.
    • Loosening. Refer to Figure.
  11. O-ring
    • Always replace after removing.
    • Coat with coolant
  12. Bolt
    • 9 Nm
  13. Connection
    • For coolant hose
  14. Engine Lifting Eye
  15. Bolt
    • 10 Nm + 90°
    • Always replace after removing.
  16. Partition Plate
  17. Engine Lifting Eye
  18. Bolt
    • 10 Nm + 90°
    • Always replace after removing.
